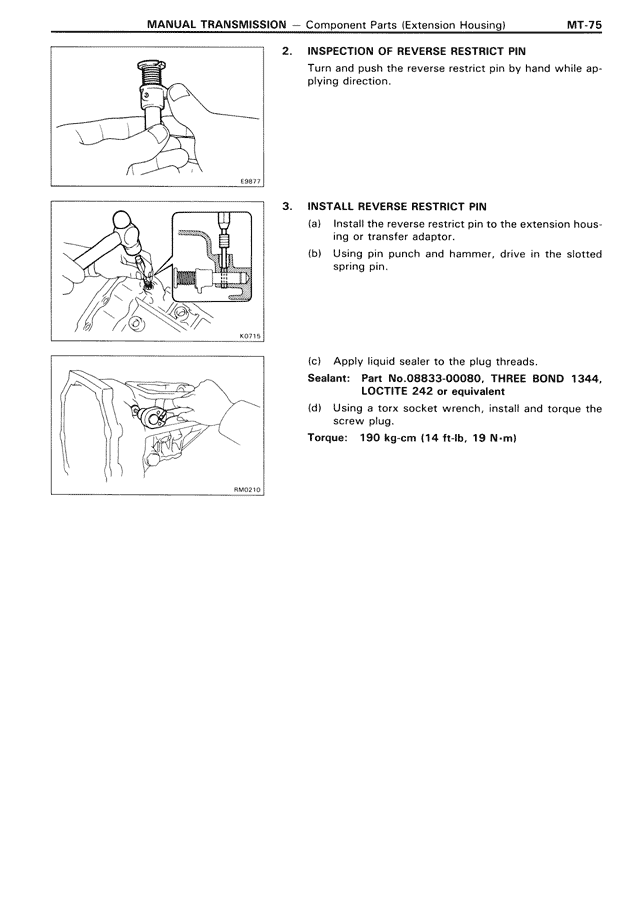

MANUAL TRANSMISSION — Component Parts (Extension Housing)
MT-75
2. INSPECTION OF REVERSE RESTRICT PIN
Turn and push the reverse restrict pin by hand while applying direction.
3. INSTALL REVERSE RESTRICT PIN
(a) Install the reverse restrict pin to the extension housing or transfer adaptor.
(b) Using pin punch and hammer, drive in the slotted spring pin.
(c) Apply liquid sealer to the plug threads.
Sealant: Part No.08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
(d) Using a torx socket wrench, install and torque the screw plug.
Torque: 190 kg-cm (14 ft-lb, 19 N-m)
