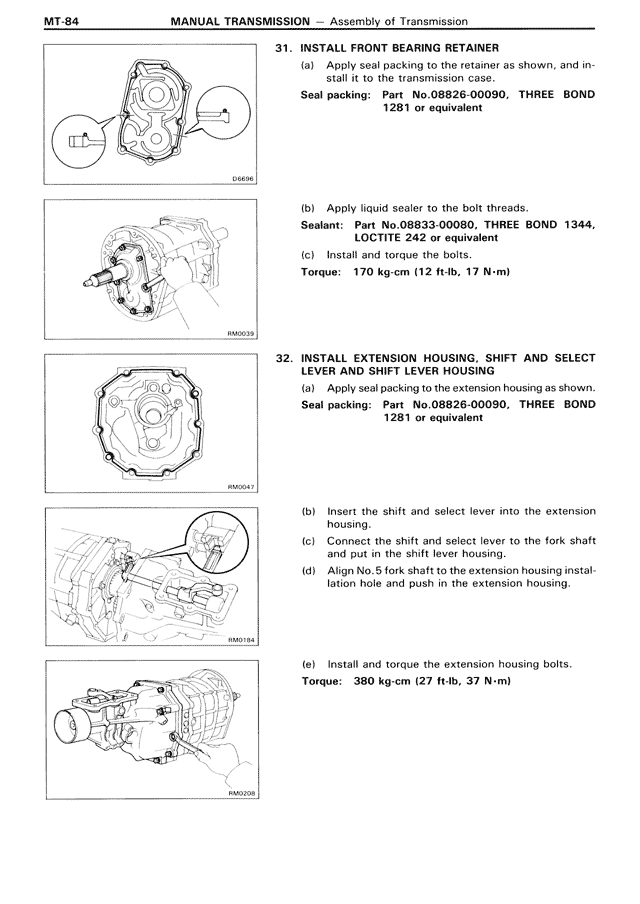

MT-84 MANUAL TRANSMISSION — Assembly of Transmission
31. INSTALL FRONT BEARING RETAINER
(a) Apply seal packing to the retainer as shown, and in-
stall it to the transmission case.
Seal packing: Part No.08826-00090, THREE BOND
1281 or equivalent
(b) Apply liquid sealer to the bolt threads.
Sealant: Part No.08833-00080, THREE BOND 1344,
LOCTITE 242 or equivalent
(c) Install and torque the bolts.
Torque: 170 kg-cm (12 ft-lb, 17 N·m)
32. INSTALL EXTENSION HOUSING, SHIFT AND SELECT
LEVER AND SHIFT LEVER HOUSING
(a) Apply seal packing to the extension housing as shown.
Seal packing: Part No.08826-00090, THREE BOND
1281 or equivalent
(b) Insert the shift and select lever into the extension
housing.
(c) Connect the shift and select lever to the fork shaft
and put in the shift lever housing.
(d) Align No.5 fork shaft to the extension housing instal-
lation hole and push in the extension housing.
(e) Install and torque the extension housing bolts.
Torque: 380 kg-cm (27 ft-lb, 37 N·m)
