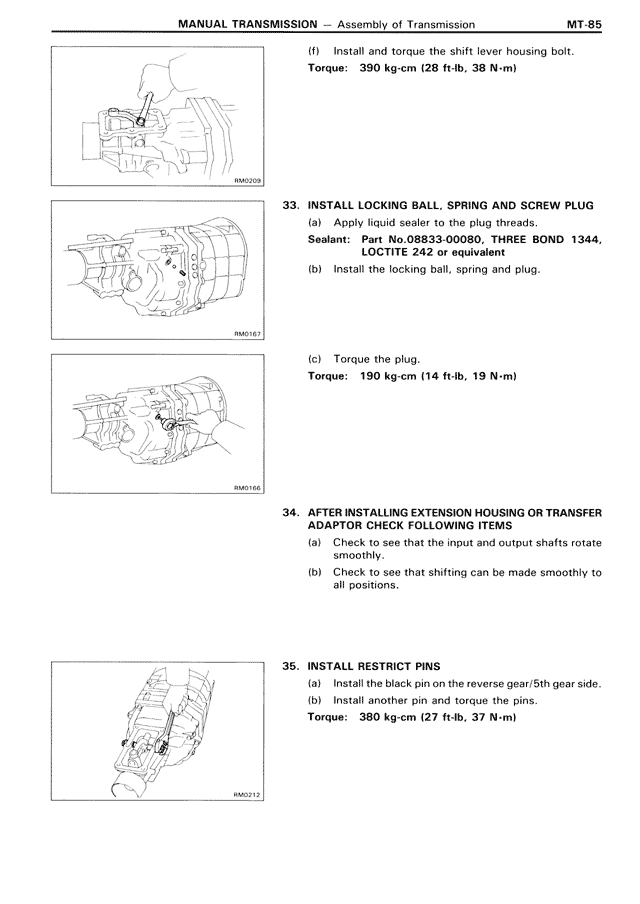

MANUAL TRANSMISSION — Assembly of Transmission MT-85
(f) Install and torque the shift lever housing bolt.
Torque: 390 kg·cm (28 ft·lb, 38 N·m)
33. INSTALL LOCKING BALL, SPRING AND SCREW PLUG
(a) Apply liquid sealer to the plug threads.
Sealant: Part No.08833-00080, THREE BOND 1344,
LOCTITE 242 or equivalent
(b) Install the locking ball, spring and plug.
(c) Torque the plug.
Torque: 190 kg·cm (14 ft·lb, 19 N·m)
34. AFTER INSTALLING EXTENSION HOUSING OR TRANSFER
ADAPTOR CHECK FOLLOWING ITEMS
(a) Check to see that the input and output shafts rotate
smoothly.
(b) Check to see that shifting can be made smoothly to
all positions.
35. INSTALL RESTRICT PINS
(a) Install the black pin on the reverse gear/5th gear side.
(b) Install another pin and torque the pins.
Torque: 380 kg·cm (27 ft·lb, 37 N·m)
