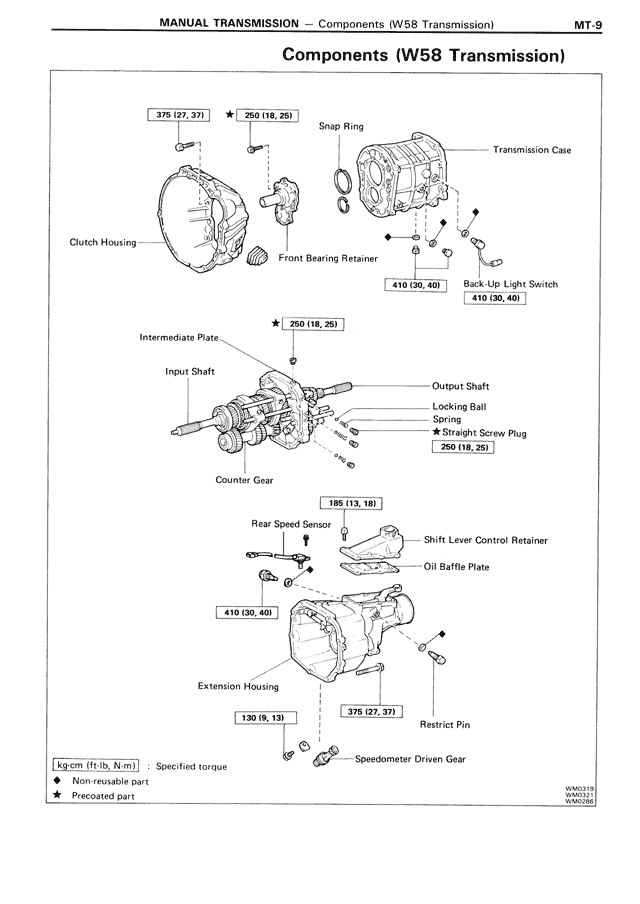

MANUAL TRANSMISSION — Components (W58 Transmission) MT-9
Components (W58 Transmission)
375 [27, 37] ★ 250 [18, 25]
Snap Ring
Transmission Case
Clutch Housing
Front Bearing Retainer
410 [30, 40]
Back Up Light Switch
410 [30, 40]
★ 250 [18, 25]
Intermediate Plate
Input Shaft
Output Shaft
Locking Ball
Spring
★ Straight Screw Plug
250 [18, 25]
Counter Gear
185 [13, 19]
Rear Speed Sensor
Shift Lever Control Retainer
Oil Baffle Plate
410 [30, 40]
Extension Housing
130 [9, 13]
375 [27, 37]
Restrict Pin
Speedometer Driven Gear
[kg·cm {ft·lb, N·m}] : Specified torque
♦ Non-reusable part
★ Precoated part
WN03178
WN03131
WN03021
