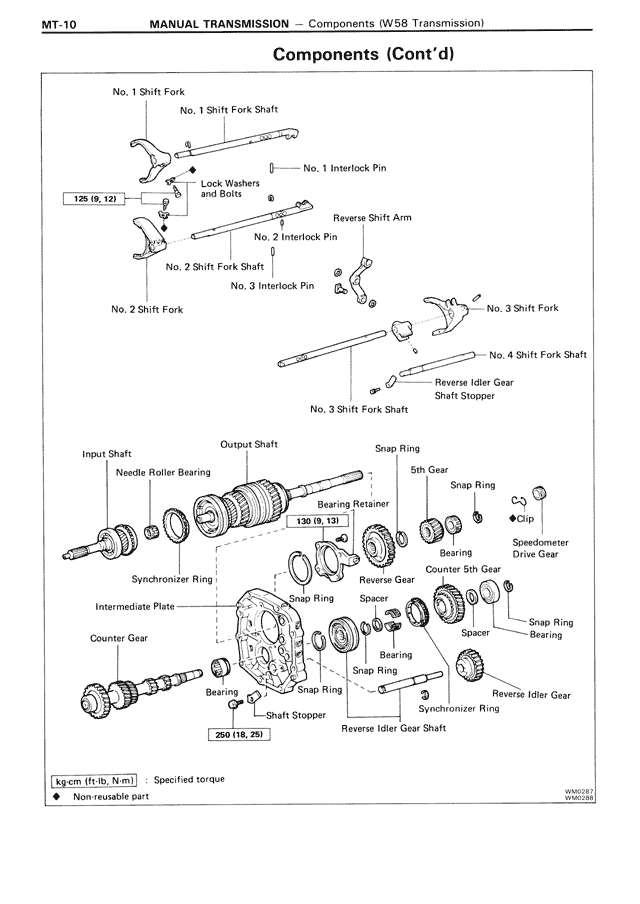

Components (Cont'd)
No. 1 Shift Fork
No. 1 Shift Fork Shaft
No. 1 Interlock Pin
Lock Washers
and Bolts
125 (9, 12)
Reverse Shift Arm
No. 2 Interlock Pin
No. 2 Shift Fork Shaft
No. 3 Interlock Pin
No. 2 Shift Fork
No. 3 Shift Fork
No. 4 Shift Fork Shaft
Reverse Idler Gear
Shaft Stopper
No. 3 Shift Fork Shaft
Output Shaft
Snap Ring
Input Shaft
5th Gear
Snap Ring
Needle Bearing
Bearing Retainer
Clip
Bearing
130 (9, 13)
Speedometer
Drive Gear
Counter 5th Gear
Synchronizer Ring
Reverse Gear
Snap Ring
Spacer
Intermediate Plate
Snap Ring
Bearing
Counter Gear
Snap Ring
Spacer
Bearing
Bearing
Snap Ring
Bearing
Snap Ring
Reverse Idler Gear
Shaft Stopper
Synchronizer Ring
260 (18, 26)
Reverse Idler Gear Shaft
[kg·cm {ft·lb, N·m}]
Specified torque
Non-reusable part
WAW028
WAW028J
