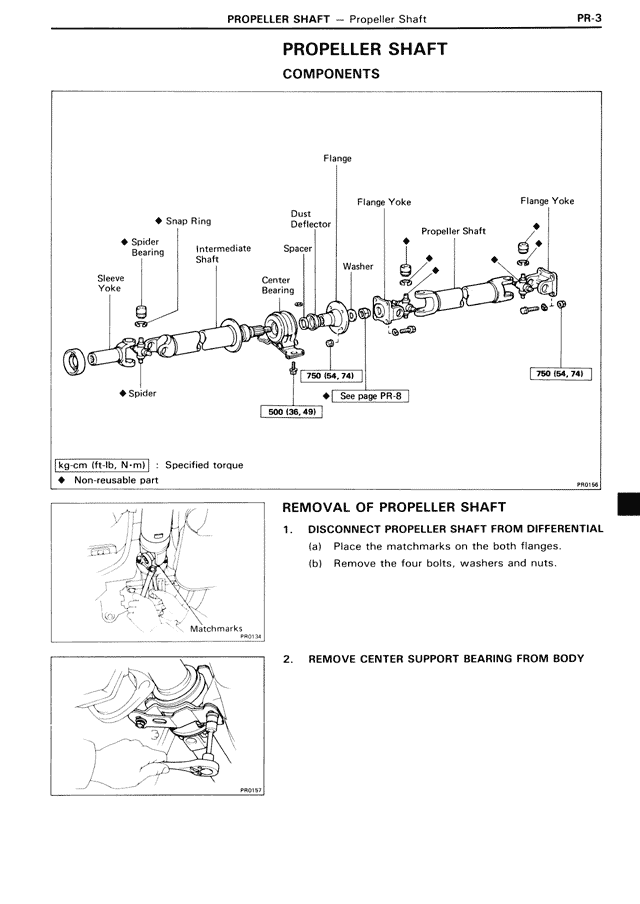

PROPELLER SHAFT
COMPONENTS
Flange
Flange Yoke
Flange Yoke
Snap Ring
Dust
Deflector
Propeller Shaft
Spider
Bearing
Intermediate
Spacer
Shaft
Washer
Center
Sleeve
Bearing
Yoke
Spider
750 [54, 74]
750 [54, 74]
See page PR-8
500 [36, 43]
kg·cm [ft·lbf, N·m] : Specified torque
◆ Non-reusable part
REMOVAL OF PROPELLER SHAFT
1. DISCONNECT PROPELLER SHAFT FROM DIFFERENTIAL
(a) Place the matchmarks on the both flanges.
(b) Remove the four bolts, washers and nuts.
Matchmarks
2. REMOVE CENTER SUPPORT BEARING FROM BODY
