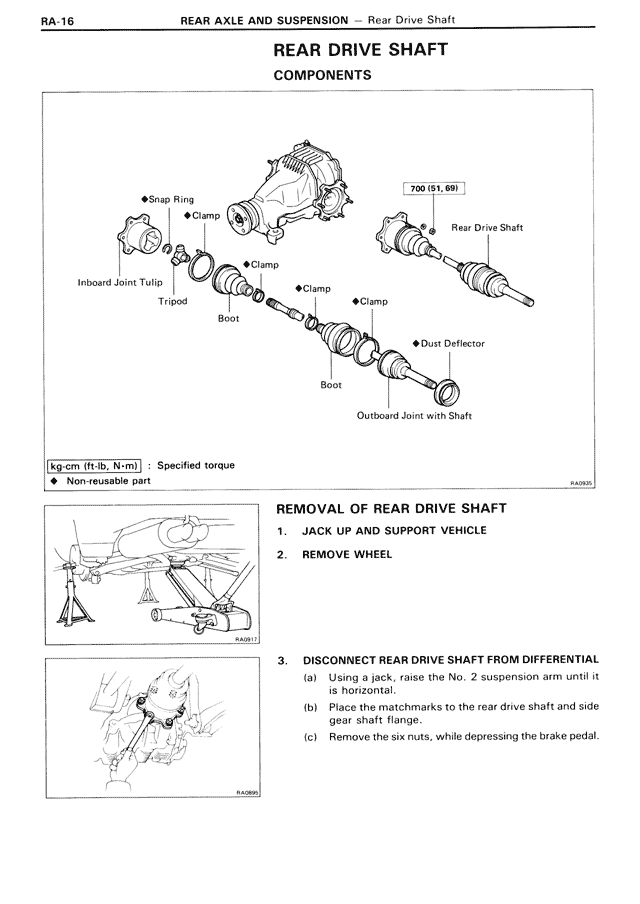

REAR DRIVE SHAFT
COMPONENTS
◆Snap Ring
◆Clamp
Inboard Joint Tulip
Tripod
Boot
◆Clamp
◆Clamp
◆Clamp
◆Clamp
Boot
◆Dust Deflector
Rear Drive Shaft
700 (51, 69)
Outboard Joint with Shaft
{kg·cm (ft·lb, N·m)} : Specified torque
◆ Non-reusable part
RA0901
REMOVAL OF REAR DRIVE SHAFT
1. JACK UP AND SUPPORT VEHICLE
2. REMOVE WHEEL
RA0912
3. DISCONNECT REAR DRIVE SHAFT FROM DIFFERENTIAL
(a) Using a jack, raise the No. 2 suspension arm until it is horizontal.
(b) Place the matchmarks to the rear drive shaft and side gear shaft flange.
(c) Remove the six nuts, while depressing the brake pedal.
RA0985
