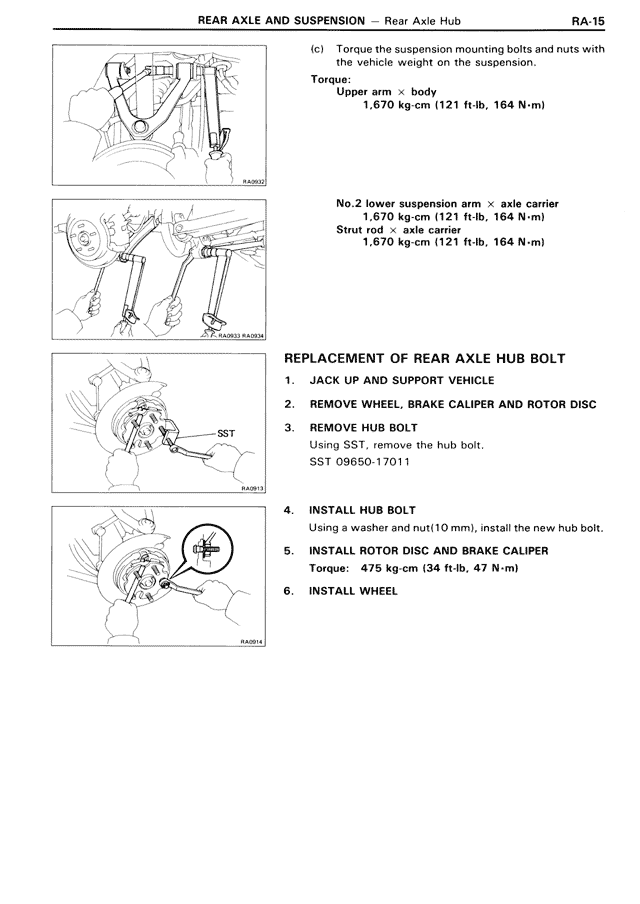

REAR AXLE AND SUSPENSION — Rear Axle Hub
RA-15
(c) Torque the suspension mounting bolts and nuts with the vehicle weight on the suspension.
Torque:
Upper arm × body
1,670 kg-cm (121 ft-lb, 164 N-m)
No.2 lower suspension arm × axle carrier
1,670 kg-cm (121 ft-lb, 164 N-m)
Strut rod × axle carrier
1,670 kg-cm (121 ft-lb, 164 N-m)
REPLACEMENT OF REAR AXLE HUB BOLT
1. JACK UP AND SUPPORT VEHICLE
2. REMOVE WHEEL, BRAKE CALIPER AND ROTOR DISC
3. REMOVE HUB BOLT
Using SST, remove the hub bolt.
SST 09650-17011
4. INSTALL HUB BOLT
Using a washer and nut (10 mm), install the new hub bolt.
5. INSTALL ROTOR DISC AND BRAKE CALIPER
Torque: 475 kg-cm (34 ft-lb, 47 N-m)
6. INSTALL WHEEL
