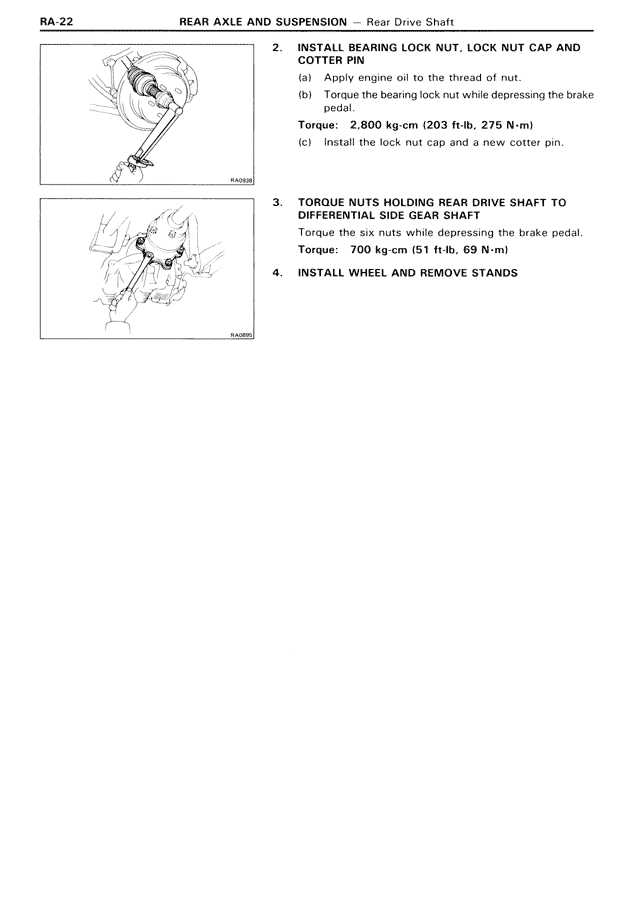

REAR AXLE AND SUSPENSION — Rear Drive Shaft — MK3 Supra Rear Axle & Suspension, page 22
100%
2. INSTALL BEARING LOCK NUT, LOCK NUT CAP AND COTTER PIN (a) Apply engine oil to the thread of nut. (b) Torque the bearing lock nut while depressing the brake pedal. Torque: 2,800 kg·cm (203 ft·lb, 275 N·m) (c) Install the lock nut cap and a new cotter pin. 3. TORQUE NUTS HOLDING REAR DRIVE SHAFT TO DIFFERENTIAL SIDE GEAR SHAFT Torque the six nuts while depressing the brake pedal. Torque: 700 kg·cm (51 ft·lb, 69 N·m) 4. INSTALL WHEEL AND REMOVE STANDS
