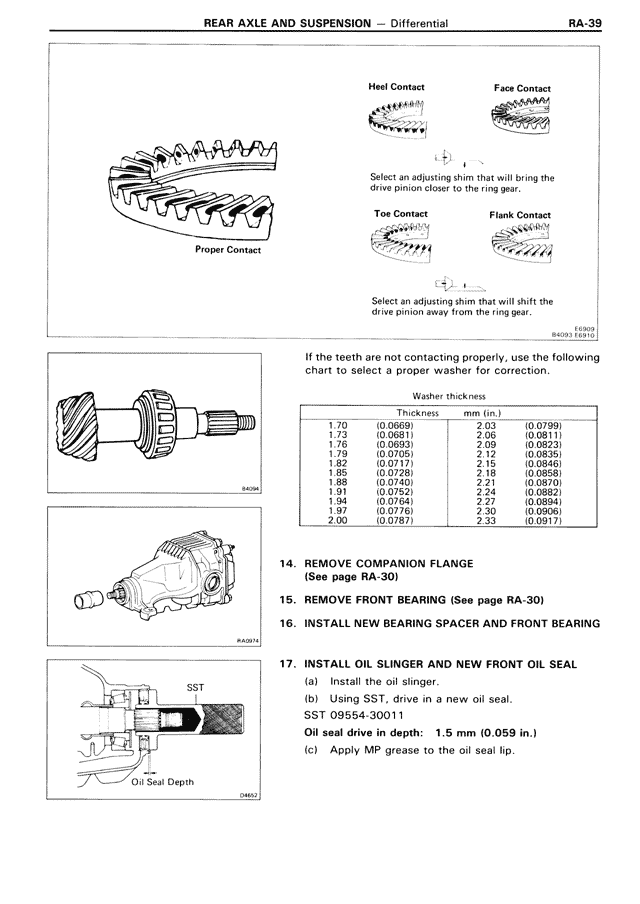

REAR AXLE AND SUSPENSION — Differential
RA-39
Heel Contact
Face Contact
Select an adjusting shim that will bring the drive pinion closer to the ring gear.
Toe Contact
Flank Contact
Select an adjusting shim that will shift the drive pinion away from the ring gear.
Proper Contact
If the teeth are not contacting properly, use the following chart to select a proper washer for correction.
Washer thickness
Thickness mm (in.)
1.70 (0.0669) 2.03 (0.0799)
1.73 (0.0681) 2.06 (0.0811)
1.76 (0.0693) 2.09 (0.0823)
1.79 (0.0705) 2.12 (0.0835)
1.82 (0.0717) 2.15 (0.0846)
1.85 (0.0728) 2.18 (0.0858)
1.88 (0.0740) 2.21 (0.0870)
1.91 (0.0752) 2.24 (0.0882)
1.94 (0.0764) 2.27 (0.0894)
1.97 (0.0776) 2.30 (0.0906)
2.00 (0.0787) 2.33 (0.0917)
14. REMOVE COMPANION FLANGE (See page RA-30)
15. REMOVE FRONT BEARING (See page RA-30)
16. INSTALL NEW BEARING SPACER AND FRONT BEARING
17. INSTALL OIL SLINGER AND NEW FRONT OIL SEAL
(a) Install the oil slinger.
(b) Using SST, drive in a new oil seal.
SST 09554-30011
Oil seal drive in depth: 1.5 mm (0.059 in.)
(c) Apply MP grease to the oil seal lip.
SST
Oil Seal Depth
