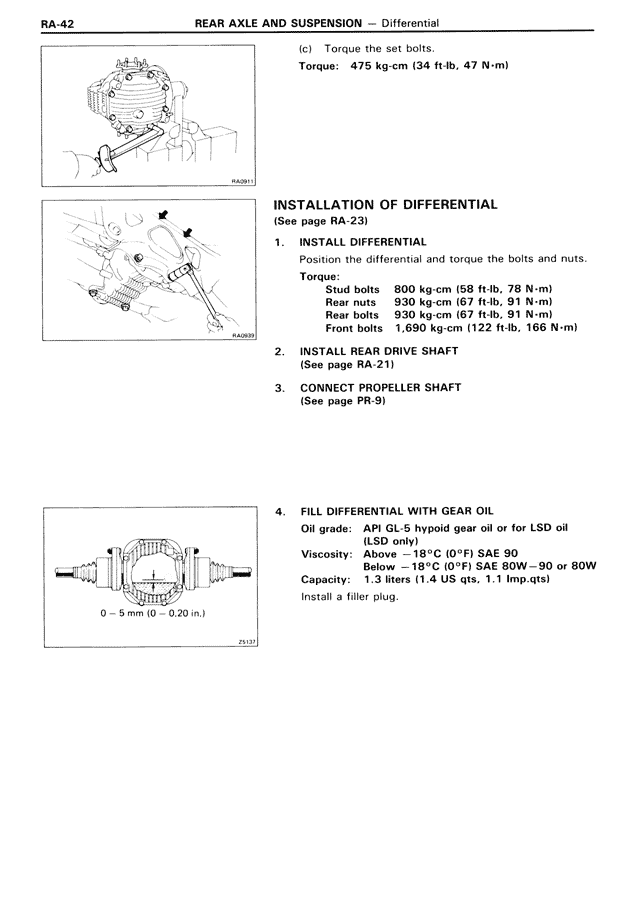

RA/Rear Axle & Suspension, page 42

RA-42     REAR AXLE AND SUSPENSION — Differential

(c) Torque the set bolts.
Torque: 475 kg-cm (34 ft-lb, 47 N·m)

INSTALLATION OF DIFFERENTIAL
(See page RA-23)

1. INSTALL DIFFERENTIAL
Position the differential and torque the bolts and nuts.
Torque:
Stud bolts   800 kg-cm (58 ft-lb, 78 N·m)
Rear nuts    930 kg-cm (67 ft-lb, 91 N·m)
Rear bolts   930 kg-cm (67 ft-lb, 91 N·m)
Front bolts  1,690 kg-cm (122 ft-lb, 166 N·m)

2. INSTALL REAR DRIVE SHAFT
(See page RA-21)

3. CONNECT PROPELLER SHAFT
(See page PR-9)

4. FILL DIFFERENTIAL WITH GEAR OIL
Oil grade: API GL-5 hypoid gear oil or for LSD oil
           (LSD only)
Viscosity: Above −18°C (0°F) SAE 90
           Below −18°C (0°F) SAE 80W−90 or 80W
Capacity:  1.3 liters (1.4 US qts, 1.1 lmp·qts)
Install a filler plug.

0 − 5 mm (0 − 0.20 in.)
