RA/Rear Axle & Suspension — Differential Case (Conventional 2 Pinion Type Differential), page 43

REAR AXLE AND SUSPENSION — Differential (Differential Case)     RA-43

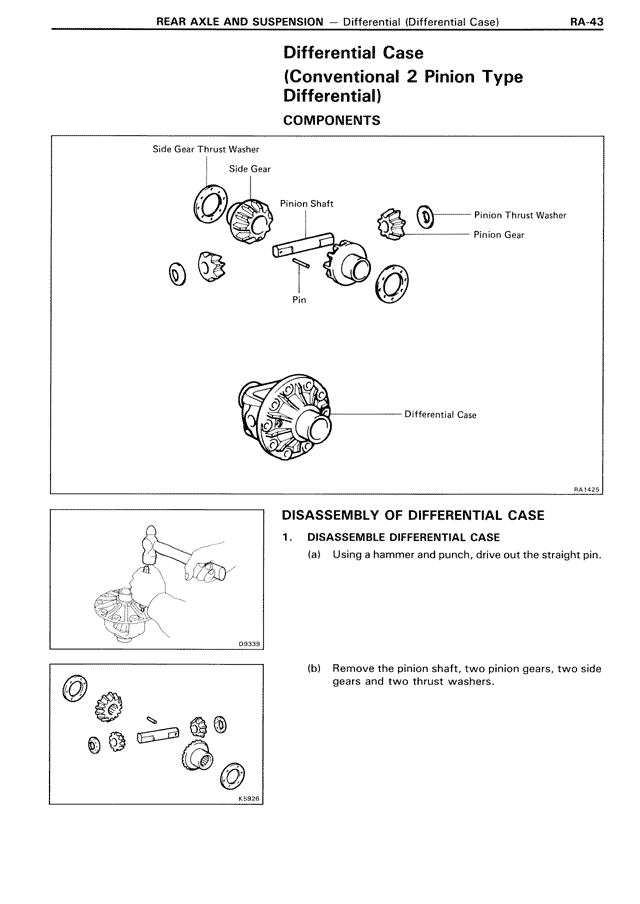

Differential Case
(Conventional 2 Pinion Type
Differential)
COMPONENTS

Side Gear Thrust Washer
Side Gear
Pinion Shaft
Pinion Thrust Washer
Pinion Gear
Pin

Differential Case

RA1625

DISASSEMBLY OF DIFFERENTIAL CASE

1. DISASSEMBLE DIFFERENTIAL CASE
(a) Using a hammer and punch, drive out the straight pin.

D9335

(b) Remove the pinion shaft, two pinion gears, two side gears and two thrust washers.

K8828
