REAR AXLE AND SUSPENSION — Rear Wheel Alignment                    RA-5

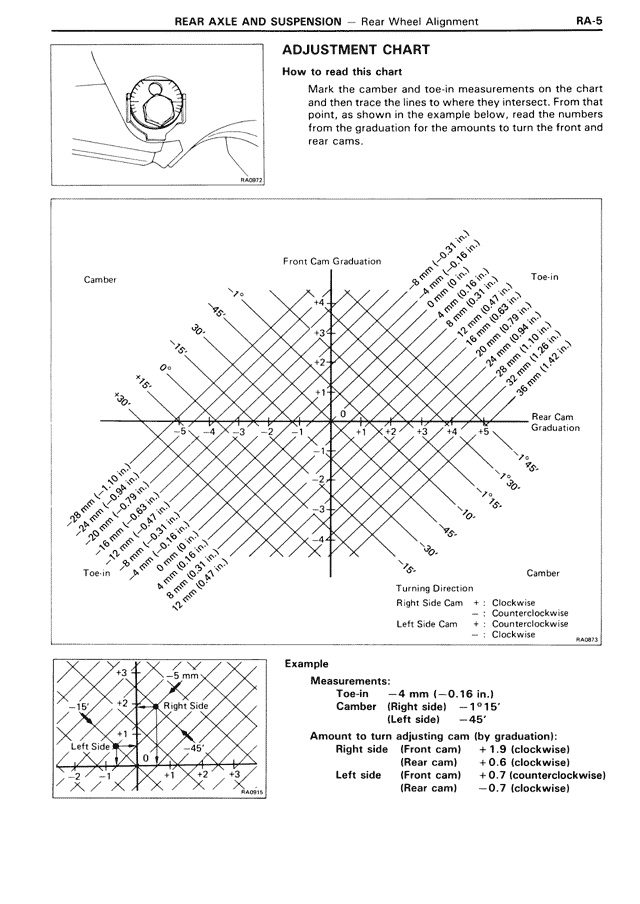

ADJUSTMENT CHART

How to read this chart

Mark the camber and toe-in measurements on the chart and then trace the lines to where they intersect. From that point, as shown in the example below, read the numbers from the graduation for the amounts to turn the front and rear cams.

Front Cam Graduation

Camber                                                                                                                           Toe-in

-30'
-15'
-15'
0'
+15'
+30'

-30' (-0.5 in.)
-28 mm (-1.1 in.)
-26 mm (-1.0 in.)
-24 mm (-0.94 in.)
-22 mm (-0.87 in.)
-20 mm (-0.79 in.)
-18 mm (-0.71 in.)
-16 mm (-0.63 in.)
-14 mm (-0.55 in.)
-12 mm (-0.47 in.)
-10 mm (-0.39 in.)
-8 mm (-0.31 in.)
-6 mm (-0.24 in.)
-4 mm (-0.16 in.)
-2 mm (-0.08 in.)
0
+2 mm (0.08 in.)
+4 mm (0.16 in.)
+6 mm (0.24 in.)
+8 mm (0.31 in.)
+10 mm (0.39 in.)
+12 mm (0.47 in.)
+14 mm (0.55 in.)

                                                                                                                                    Rear Cam
                                                                                                                                    Graduation
                                                                                                                                    +15'
                                                                                                                                    +30'
                                                                                                                                    -15'
                                                                                                                                    -10'
                                                                                                                                    -15'
                                                                                                                                    -20'

-28 mm (-1.1 in.)
-26 mm (-1.0 in.)
-24 mm (-0.94 in.)
-22 mm (-0.87 in.)
-20 mm (-0.79 in.)
-18 mm (-0.71 in.)
-16 mm (-0.63 in.)
-14 mm (-0.55 in.)
-12 mm (-0.47 in.)
-10 mm (-0.39 in.)
-8 mm (-0.31 in.)
-6 mm (-0.24 in.)

Toe-in                                                                                                                           Camber

Turning Direction
Right Side Cam    +    Clockwise
                            Counterclockwise
Left Side Cam      +    Counterclockwise
                            Clockwise

Example

Measurements:
    Toe-in    -4 mm (-0.16 in.)
    Camber    (Right side)    -1°15'
              (Left side)      -45'

Amount to turn adjusting cam (by graduation):
    Right side    (Front cam)    +1.9 (clockwise)
                  (Rear cam)     +0.6 (clockwise)
    Left side     (Front cam)    +0.7 (counterclockwise)
                  (Rear cam)     -0.7 (clockwise)
