RA-6

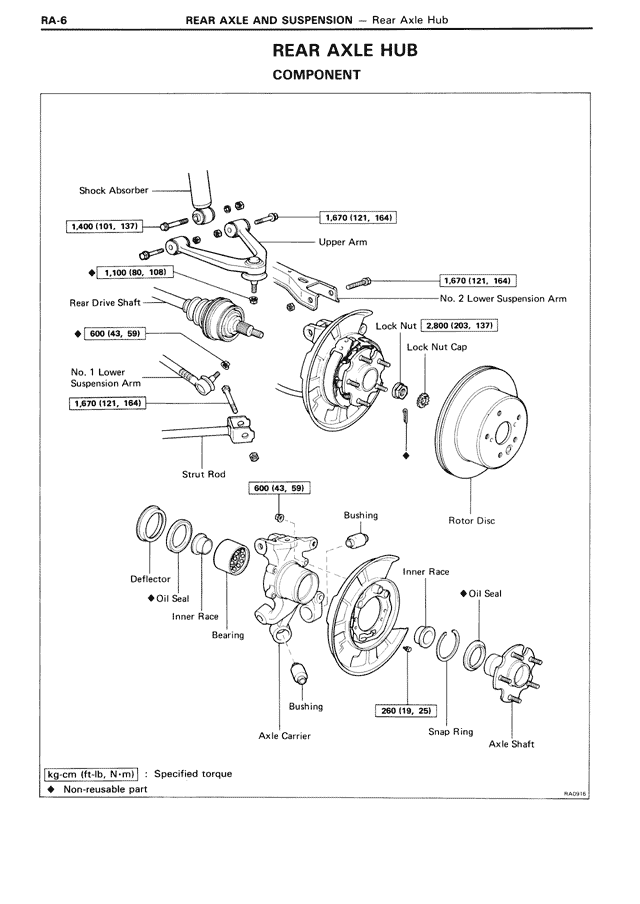

REAR AXLE AND SUSPENSION - Rear Axle Hub
REAR AXLE HUB
COMPONENT
Shock Absorber
1,400 (101, 137)
1,070 (121, 164)
Upper Arm
1,100 (80, 108)
1,070 (121, 164)
Rear Drive Shaft
No. 2 Lower Suspension Arm
600 (43, 59)
Lock Nut 2,800 (203, 137)
No. 1 Lower
Lock Nut Cap
Suspension Arm
1,070 (121, 164)
Strut Rod
600 (43, 59)
Bushing
Rotor Disc
Deflector
Oil Seal
Inner Race
Oil Seal
Inner Race
Bearing
Bushing
260 (19, 29)
Axle Carrier
Snap Ring
Axle Shaft
kg·cm (ft·lb, N·m) : Specified torque
Non-reusable part
RA0416
