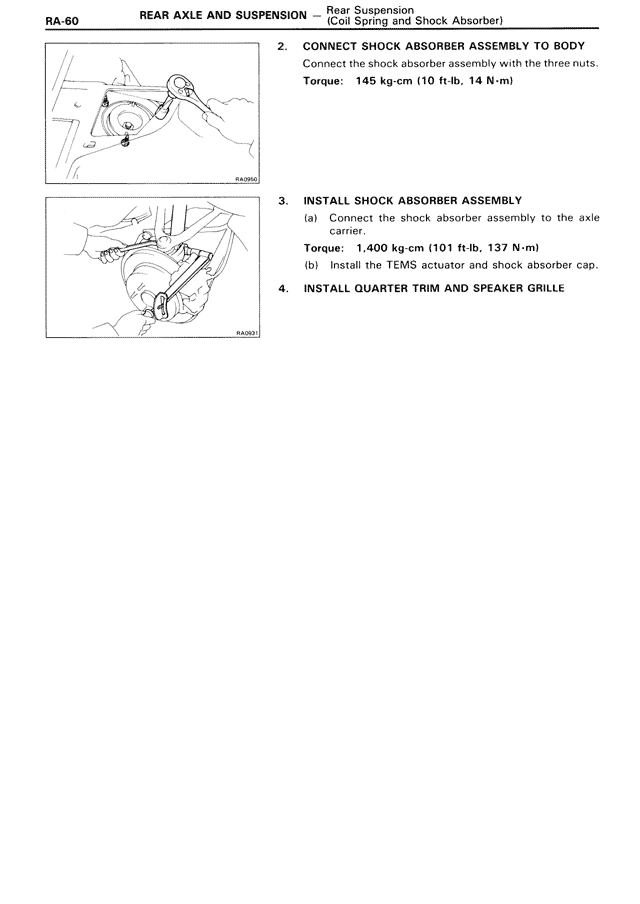

RA-60 REAR AXLE AND SUSPENSION — Rear Suspension (Coil Spring and Shock Absorber) 2. CONNECT SHOCK ABSORBER ASSEMBLY TO BODY Connect the shock absorber assembly with the three nuts. Torque: 145 kg-cm (10 ft-lb, 14 N·m) 3. INSTALL SHOCK ABSORBER ASSEMBLY (a) Connect the shock absorber assembly to the axle carrier. Torque: 1,400 kg-cm (101 ft-lb, 137 N·m) (b) Install the TEMS actuator and shock absorber cap. 4. INSTALL QUARTER TRIM AND SPEAKER GRILLE
