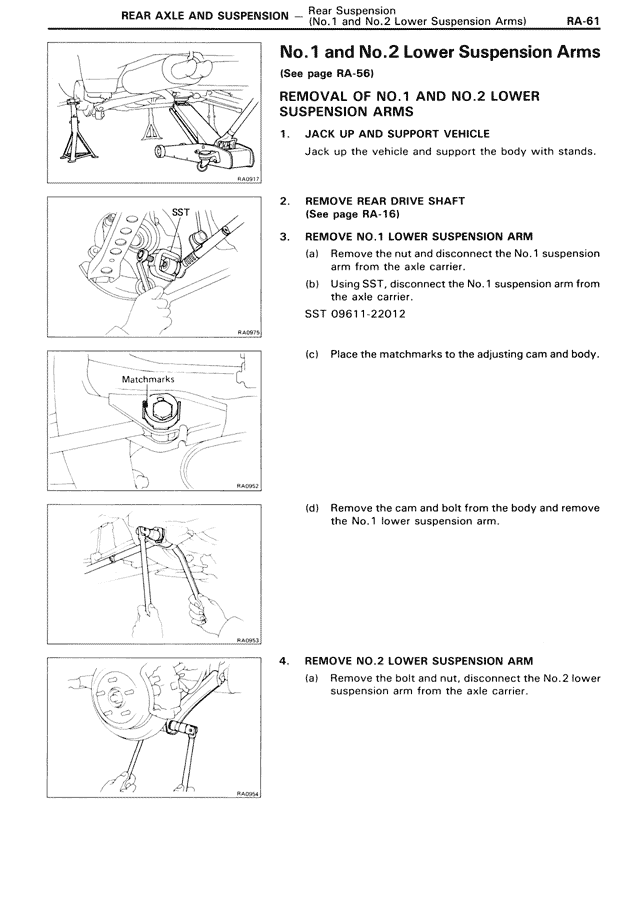

RA/Rear Axle & Suspension — No.1 and No.2 Lower Suspension Arms, page 61

No.1 and No.2 Lower Suspension Arms
(See page RA-56)

REMOVAL OF NO.1 AND NO.2 LOWER SUSPENSION ARMS

1. JACK UP AND SUPPORT VEHICLE
Jack up the vehicle and support the body with stands.

2. REMOVE REAR DRIVE SHAFT
(See page RA-16)

3. REMOVE NO.1 LOWER SUSPENSION ARM
(a) Remove the nut and disconnect the No.1 suspension arm from the axle carrier.
(b) Using SST, disconnect the No.1 suspension arm from the axle carrier.
SST 09611-22012
(c) Place the matchmarks to the adjusting cam and body.
(d) Remove the cam and bolt from the body and remove the No.1 lower suspension arm.

4. REMOVE NO.2 LOWER SUSPENSION ARM
(a) Remove the bolt and nut, disconnect the No.2 lower suspension arm from the axle carrier.
