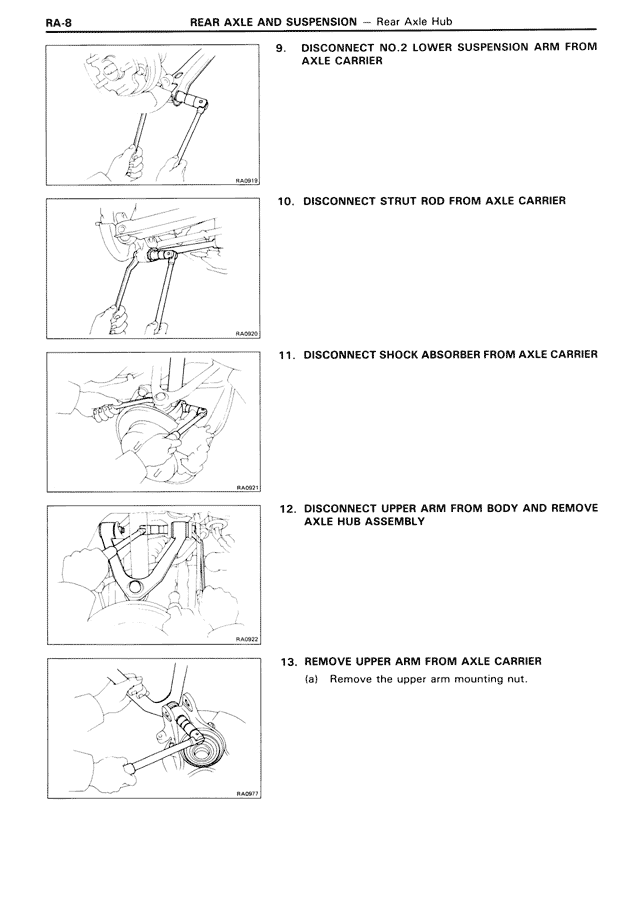

RA-8 REAR AXLE AND SUSPENSION — Rear Axle Hub 9. DISCONNECT NO.2 LOWER SUSPENSION ARM FROM AXLE CARRIER RA2819 10. DISCONNECT STRUT ROD FROM AXLE CARRIER RA2820 11. DISCONNECT SHOCK ABSORBER FROM AXLE CARRIER RA2821 12. DISCONNECT UPPER ARM FROM BODY AND REMOVE AXLE HUB ASSEMBLY RA2822 13. REMOVE UPPER ARM FROM AXLE CARRIER (a) Remove the upper arm mounting nut. RA2823
