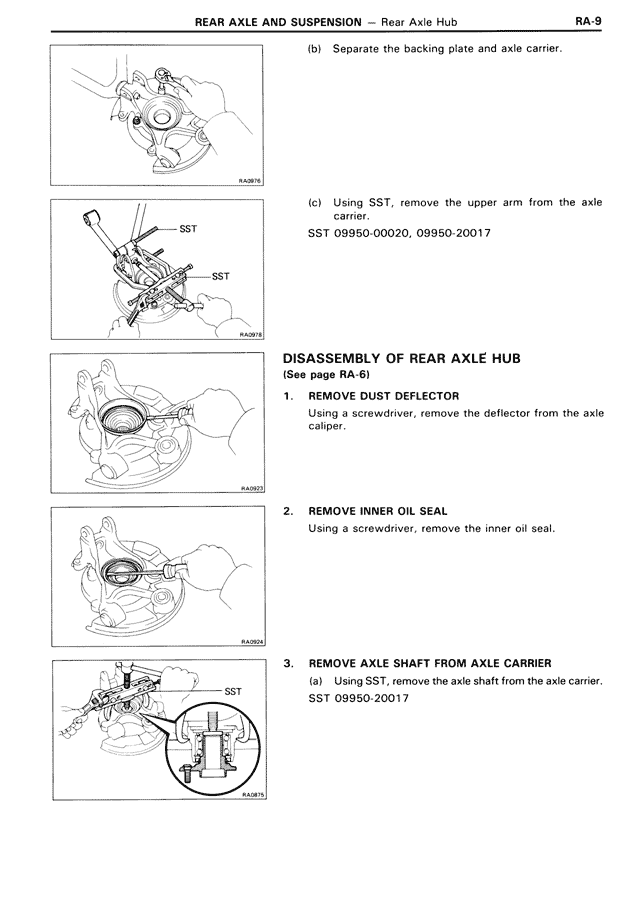

REAR AXLE AND SUSPENSION — Rear Axle Hub
RA-9
(b) Separate the backing plate and axle carrier.
(c) Using SST, remove the upper arm from the axle carrier.
SST 09950-00020, 09950-20017
DISASSEMBLY OF REAR AXLE HUB
(See page RA-6)
1. REMOVE DUST DEFLECTOR
Using a screwdriver, remove the deflector from the axle caliper.
2. REMOVE INNER OIL SEAL
Using a screwdriver, remove the inner oil seal.
3. REMOVE AXLE SHAFT FROM AXLE CARRIER
(a) Using SST, remove the axle shaft from the axle carrier.
SST 09950-20017
