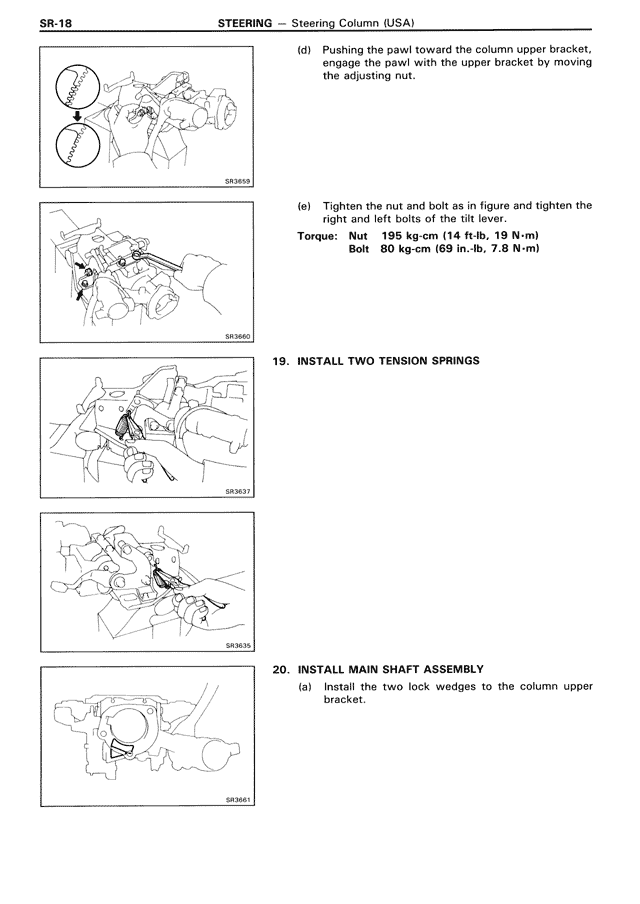

SR-18
STEERING — Steering Column (USA)
(d) Pushing the pawl toward the column upper bracket, engage the pawl with the upper bracket by moving the adjusting nut.
(e) Tighten the nut and bolt as in figure and tighten the right and left bolts of the tilt lever.
Torque: Nut 195 kg·cm (14 ft·lb, 19 N·m)
Bolt 80 kg·cm (69 in.·lb, 7.8 N·m)
19. INSTALL TWO TENSION SPRINGS
20. INSTALL MAIN SHAFT ASSEMBLY
(a) Install the two lock wedges to the column upper bracket.
