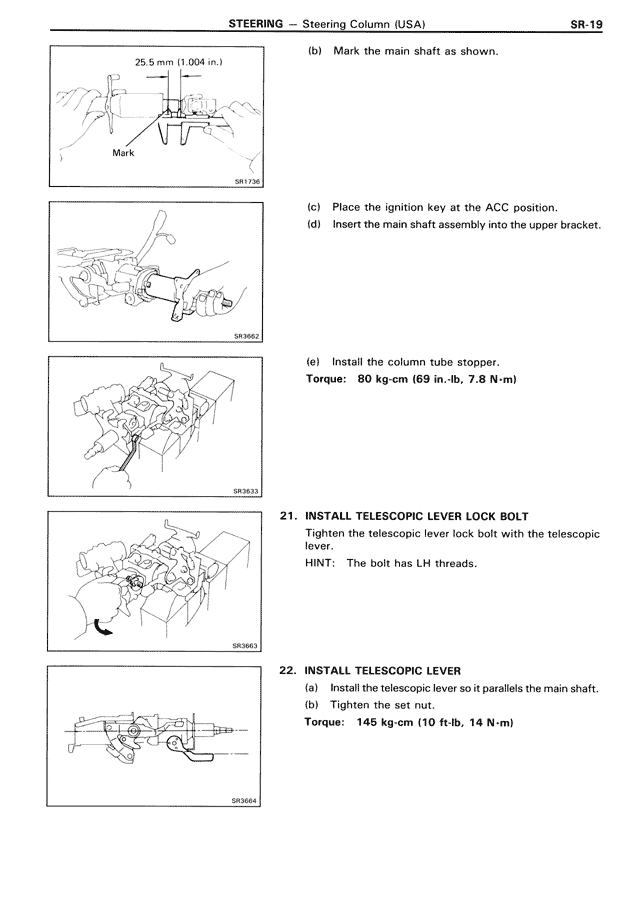

STEERING — Steering Column (USA) SR-19
25.5 mm (1.004 in.)
Mark
SR1736
(b) Mark the main shaft as shown.
SR3632
(c) Place the ignition key at the ACC position.
(d) Insert the main shaft assembly into the upper bracket.
SR3633
(e) Install the column tube stopper.
Torque: 80 kg-cm (69 in.-lb, 7.8 N-m)
SR3663
21. INSTALL TELESCOPIC LEVER LOCK BOLT
Tighten the telescopic lever lock bolt with the telescopic lever.
HINT: The bolt has LH threads.
SR3664
22. INSTALL TELESCOPIC LEVER
(a) Install the telescopic lever so it parallels the main shaft.
(b) Tighten the set nut.
Torque: 145 kg-cm (10 ft.-lb, 14 N-m)
