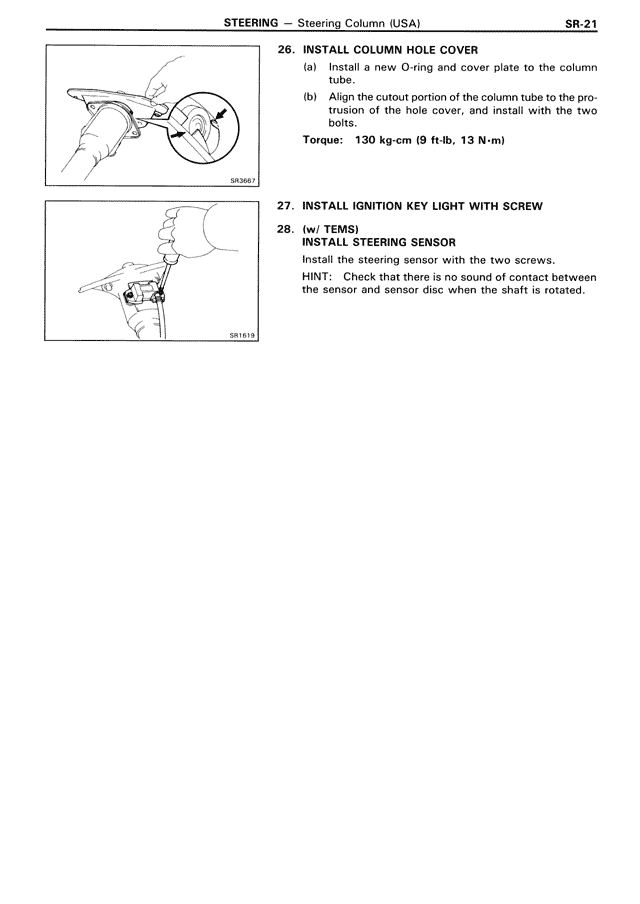

STEERING — Steering Column (USA) — MK3 Supra Steering, page 21
100%
26. INSTALL COLUMN HOLE COVER (a) Install a new O-ring and cover plate to the column tube. (b) Align the cutout portion of the column tube to the protrusion of the hole cover, and install with the two bolts. Torque: 130 kg·cm (9 ft·lb, 13 N·m) 27. INSTALL IGNITION KEY LIGHT WITH SCREW 28. (w/ TEMS) INSTALL STEERING SENSOR Install the steering sensor with the two screws. HINT: Check that there is no sound of contact between the sensor and sensor disc when the shaft is rotated.
