SR-22 STEERING — Steering Column (CANADA)
CANADA

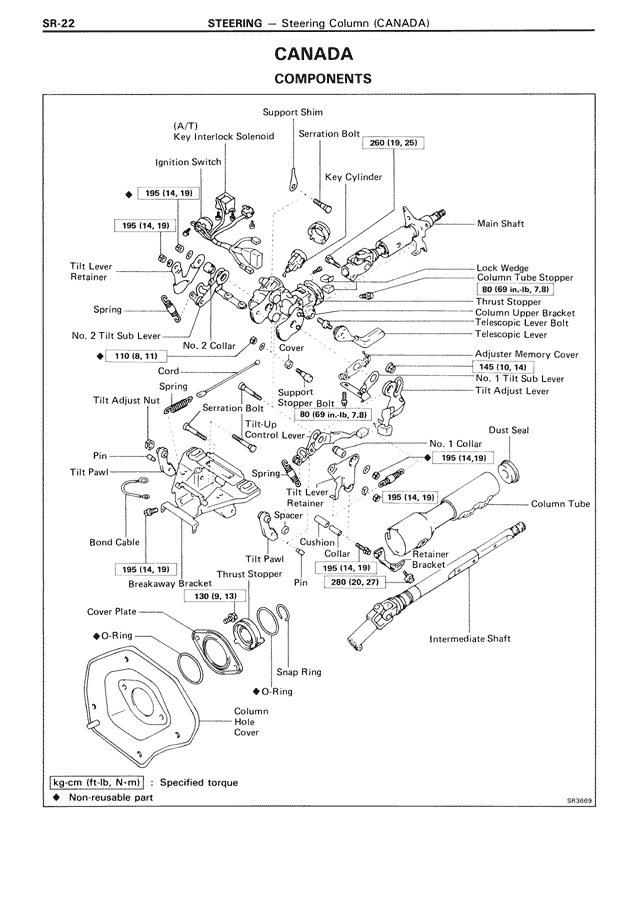

COMPONENTS
Support Shim
(A,71)
Key Interlock Solenoid Serration Bolt
260 {13, 19}
Ignition Switch
Key Cylinder
♦ 195 {14, 19}
195 {14, 19}
Tilt Lever
Retainer
Main Shaft
Lock Wedge
Spring Lock Wedge Stopper
80 {69 in.-lb, 7.8}
Thrust Stopper
Column Upper Bracket
No. 2 Tilt Sub Lever Telescope Lever Bolt
Telescope Lever
110 {9, 11} No. 2 Collar Cover
Adjuster Memory Cover
Cord 145 {10, 14}
No. 1 Tilt Sub Lever
Spring Tilt Adjuster Lever
Tilt Adjust Nut Support
Serration Ring Stopper Bolt
80 {69 in.-lb, 7.8}
Tilt-Up Dust Seal
Control Lever
Pin No. 1 Collar
Tilt Pawl 195 {14, 19}
Spring
Tilt Lever ♦ 195 {14, 19}
Retainer Column Tube
Spacer
Bond Cable Pin Pawl Cushion
Collar Retainer
195 {14, 19} Pin 195 {14, 19} Bracket
Breakaway Bracket Thrust Stopper ♦
280 {20, 27}
130 {9, 13}
Cover Plate
Intermediate Shaft
♦ O-Ring
Snap Ring
♦ O-Ring
Column
Hole
Cover
[kg-cm {ft-lb, N-m}] : Specified torque
♦ Non-reusable part
SR-9463
