STEERING — Power Steering (Gear Housing) SR-61

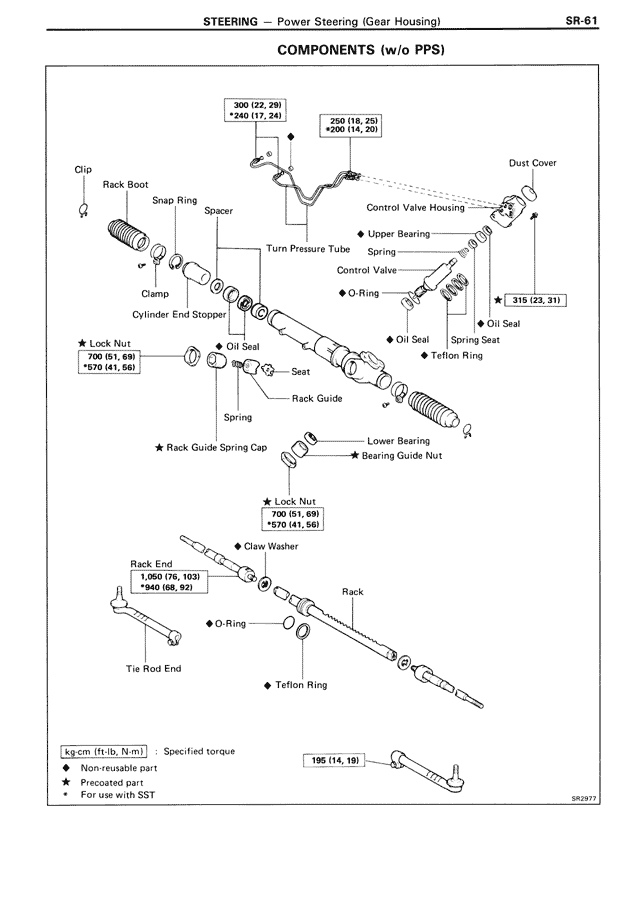

COMPONENTS (w/o PPS)
300 [22, 23]
*240 [17, 24]
250 [18, 25]
*200 [14, 20]
Dust Cover
Grip
Rack Boot
Snap Ring
Control Valve Housing
Spacer
Upper Bearing
Turn Pressure Tube
Spring
Control Valve
Clamp
O-Ring
* [315 [23, 31]
Cylinder End Stopper
Oil Seal
Oil Seal
Spring Seat
* Lock Nut
Oil Seal
Teflon Ring
700 [51, 69]
Seat
*570 [41, 58]
Rack Guide
Spring
* Rack Guide Spring Cap
Lower Bearing
* Bearing Guide Nut
* Lock Nut
700 [51, 69]
*570 [41, 58]
Claw Washer
Rack End
1,050 [76, 103]
*940 [68, 93]
Rack
O-Ring
Tie Rod End
Teflon Ring
kg·cm [ft·lb, N·m] Specified torque
195 [14, 18]
♦ Non-reusable part
* Precoated part
· For use with SST
SR3977
