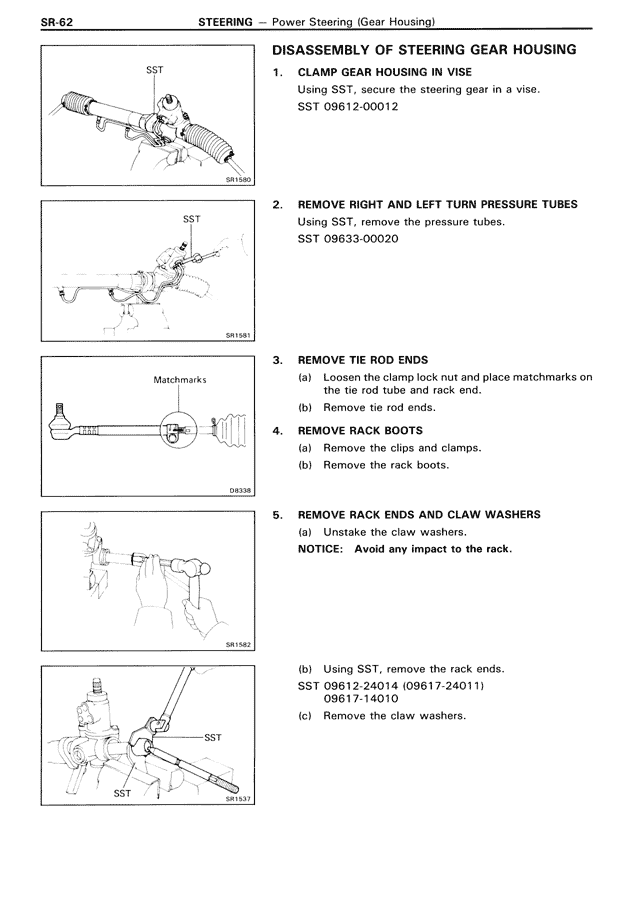

SR-62
STEERING — Power Steering (Gear Housing)
DISASSEMBLY OF STEERING GEAR HOUSING
1. CLAMP GEAR HOUSING IN VISE
Using SST, secure the steering gear in a vise.
SST 09612-00012
SST
SR1580
2. REMOVE RIGHT AND LEFT TURN PRESSURE TUBES
Using SST, remove the pressure tubes.
SST 09633-00020
SST
SR1581
3. REMOVE TIE ROD ENDS
(a) Loosen the clamp lock nut and place matchmarks on the tie rod tube and rack end.
(b) Remove the rod ends.
Matchmarks
D8338
4. REMOVE RACK BOOTS
(a) Remove the clips and clamps.
(b) Remove the rack boots.
5. REMOVE RACK ENDS AND CLAW WASHERS
(a) Unstake the claw washers.
NOTICE: Avoid any impact to the rack.
SR1582
(b) Using SST, remove the rack ends.
SST 09612-24014 (09617-24011)
09617-14010
(c) Remove the claw washers.
SST
SST
SR1537
