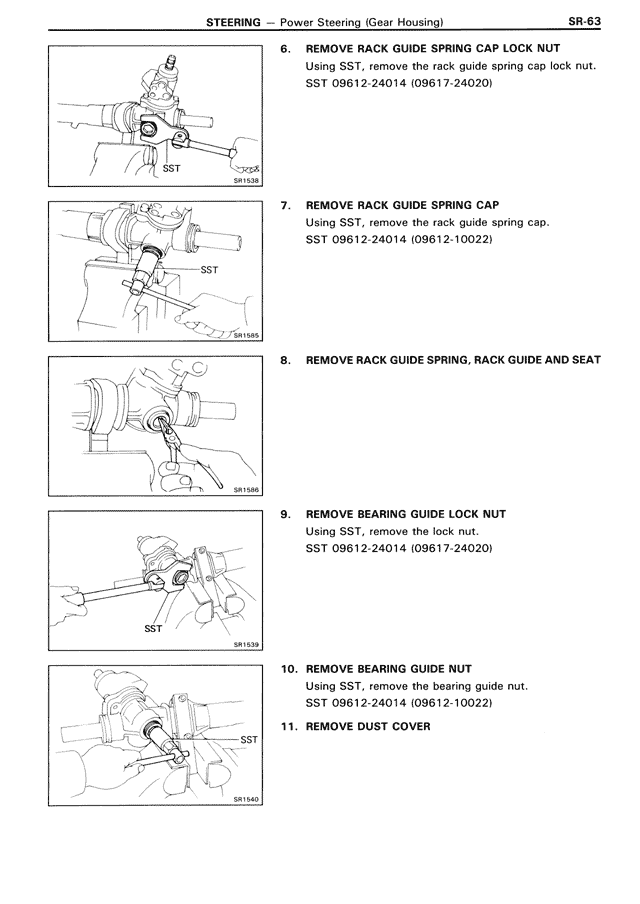

STEERING — Power Steering (Gear Housing) SR-63
6. REMOVE RACK GUIDE SPRING CAP LOCK NUT
Using SST, remove the rack guide spring cap lock nut.
SST 09612-24014 (09617-24020)
[Diagram showing SST tool removing lock nut]
7. REMOVE RACK GUIDE SPRING CAP
Using SST, remove the rack guide spring cap.
SST 09612-24014 (09612-10022)
[Diagram showing SST tool removing spring cap]
8. REMOVE RACK GUIDE SPRING, RACK GUIDE AND SEAT
[Diagram showing removal of rack guide spring and components]
9. REMOVE BEARING GUIDE LOCK NUT
Using SST, remove the lock nut.
SST 09612-24014 (09617-24020)
[Diagram showing SST tool removing bearing guide lock nut]
10. REMOVE BEARING GUIDE NUT
Using SST, remove the bearing guide nut.
SST 09612-24014 (09612-10022)
11. REMOVE DUST COVER
[Diagram showing SST tool and dust cover removal]
