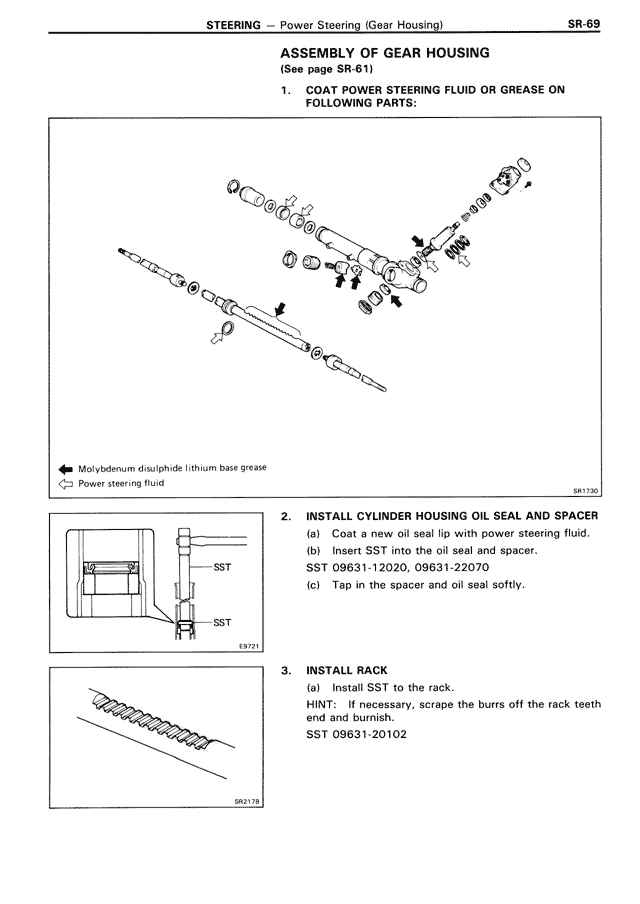

STEERING — Power Steering (Gear Housing) SR-69
ASSEMBLY OF GEAR HOUSING
(See page SR-61)
1. COAT POWER STEERING FLUID OR GREASE ON
FOLLOWING PARTS:
[Diagram showing gear housing assembly with indicators for:
← Molybdenum disulphide lithium base grease
○ Power steering fluid]
2. INSTALL CYLINDER HOUSING OIL SEAL AND SPACER
(a) Coat a new oil seal lip with power steering fluid.
(b) Insert SST into the oil seal and spacer.
SST 09631-12020, 09631-22070
(c) Tap in the spacer and oil seal softly.
[Diagram showing SST tool installation into cylinder housing]
3. INSTALL RACK
(a) Install SST to the rack.
HINT: If necessary, scrape the burrs off the rack teeth
end and burnish.
SST 09631-20102
[Diagram showing rack with SST tool attached]
