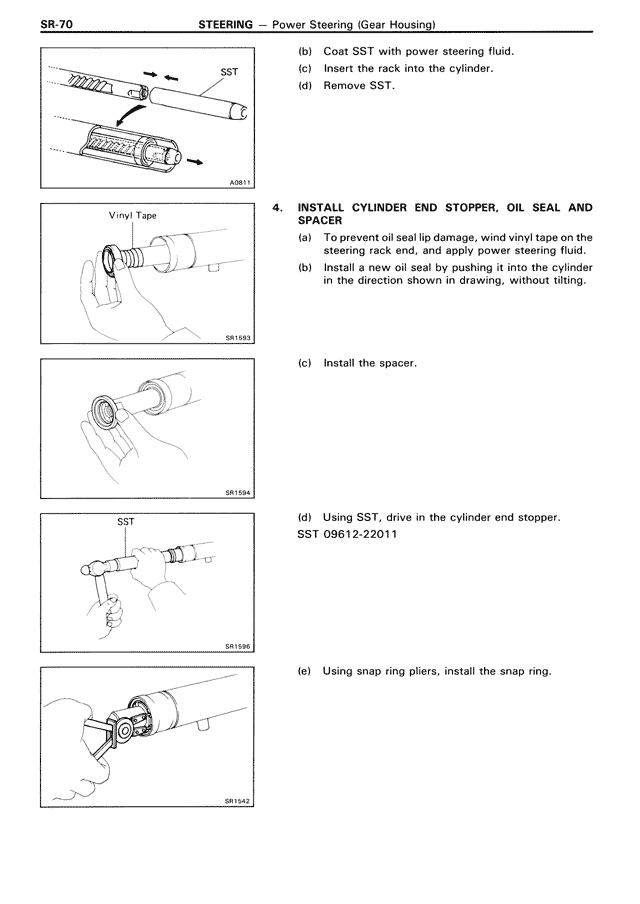

SR-70 STEERING — Power Steering (Gear Housing)
(b) Coat SST with power steering fluid.
(c) Insert the rack into the cylinder.
(d) Remove SST.
4. INSTALL CYLINDER END STOPPER, OIL SEAL AND
SPACER
(a) To prevent oil seal lip damage, wind vinyl tape on the
steering rack end, and apply power steering fluid.
(b) Install a new oil seal by pushing it into the cylinder
in the direction shown in drawing, without tilting.
(c) Install the spacer.
(d) Using SST, drive in the cylinder end stopper.
SST 09612-22011
(e) Using snap ring pliers, install the snap ring.
