STEERING — Power Steering (Gear Housing) — MK3 Supra Steering, page 83
100%

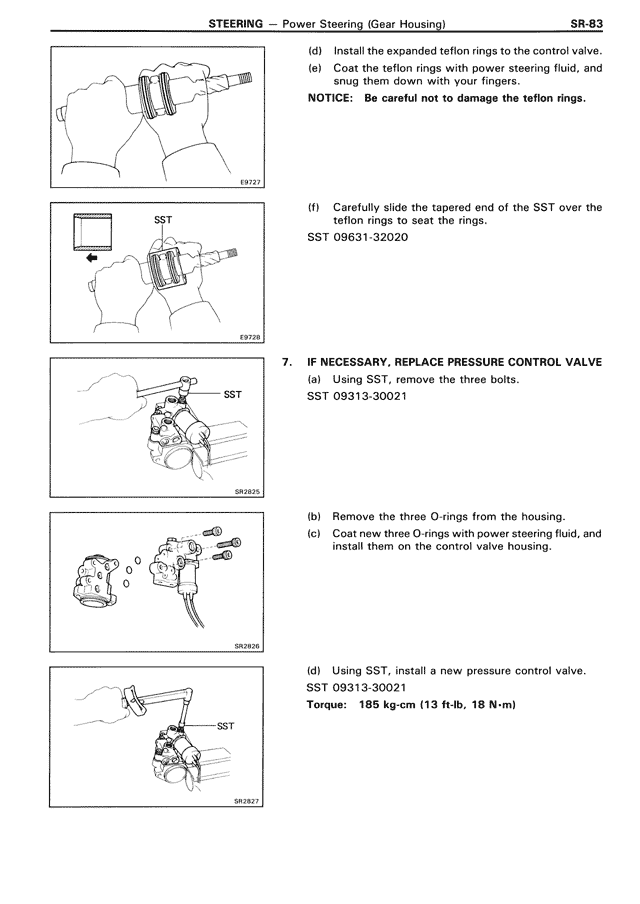

STEERING — Power Steering (Gear Housing) SR-83 (d) Install the expanded teflon rings to the control valve. (e) Coat the teflon rings with power steering fluid, and press them down with your fingers. NOTICE: Be careful not to damage the teflon rings. (f) Carefully slide the tapered end of the SST over the teflon rings to seat the rings. SST 09631-32020 7. IF NECESSARY, REPLACE PRESSURE CONTROL VALVE (a) Using SST, remove the three bolts. SST 09313-30021 (b) Remove the three O-rings from the housing. (c) Coat new three O-rings with power steering fluid, and install them on the control valve housing. (d) Using SST, install a new pressure control valve. SST 09313-30021 Torque: 185 kg-cm (13 ft-lb, 18 N-m)
