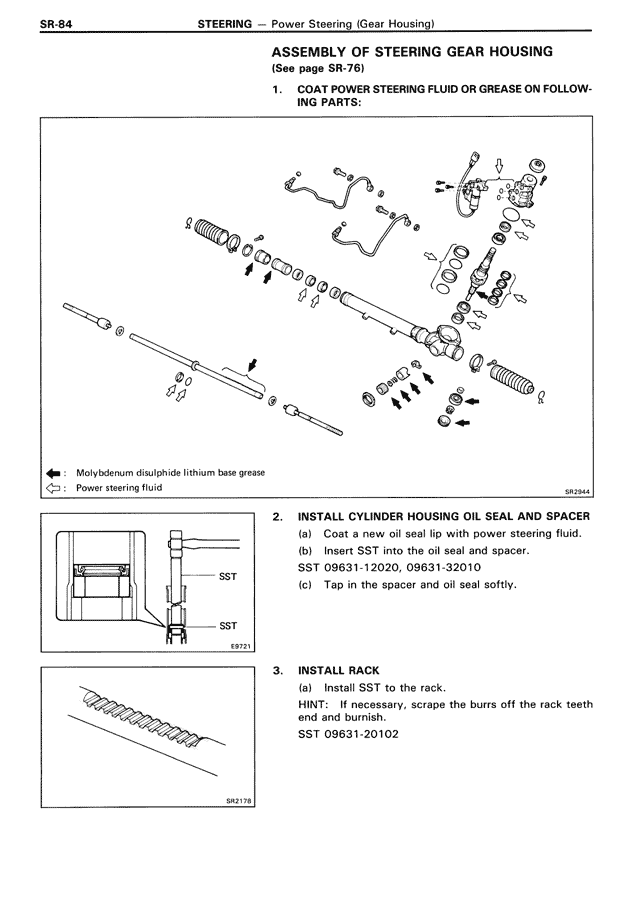

SR-84
STEERING — Power Steering (Gear Housing)
ASSEMBLY OF STEERING GEAR HOUSING
(See page SR-76)
1. COAT POWER STEERING FLUID OR GREASE ON FOLLOWING PARTS:
[Diagram showing exploded view of steering gear housing parts]
Molybdenum disulphide lithium base grease
Power steering fluid
2. INSTALL CYLINDER HOUSING OIL SEAL AND SPACER
(a) Coat a new oil seal lip with power steering fluid.
(b) Insert SST into the oil seal and spacer.
SST 09631-12020, 09631-32010
(c) Tap in the spacer and oil seal softly.
[Diagram showing SST installation with two views]
3. INSTALL RACK
(a) Install SST to the rack.
HINT: If necessary, scrape the burrs off the rack teeth end and burnish.
SST 09631-20102
[Diagram showing rack installation]
