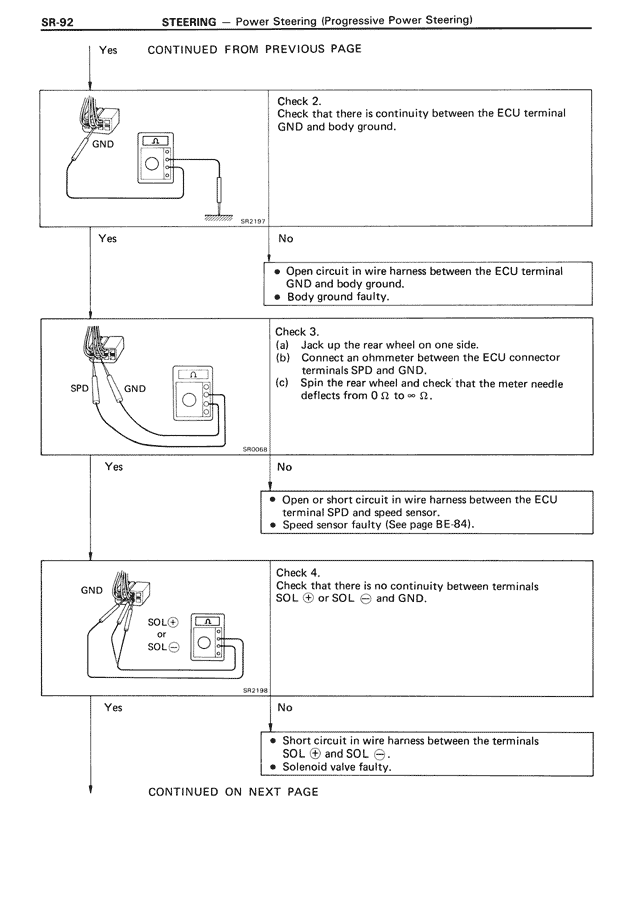

SR-92
STEERING — Power Steering (Progressive Power Steering)
CONTINUED FROM PREVIOUS PAGE
Yes
Check 2.
Check that there is continuity between the ECU terminal GND and body ground.
GND
SP2197
Yes No
• Open circuit in wire harness between the ECU terminal GND and body ground.
• Body ground faulty.
Check 3.
(a) Jack up the rear wheel on one side.
(b) Connect an ohmmeter between the ECU connector terminals SPD and GND.
(c) Spin the rear wheel and check that the meter needle deflects from 0 Ω to ∞ Ω.
SPD
GND
SP2088
Yes No
• Open or short circuit in wire harness between the ECU terminal SPD and speed sensor.
• Speed sensor faulty (See page BE-84).
Check 4.
Check that there is no continuity between terminals SOL ① or SOL ② and GND.
GND
SOL①
or
SOL②
SP2199
Yes No
• Short circuit in wire harness between the terminals SOL ① and SOL ②.
• Solenoid valve faulty.
CONTINUED ON NEXT PAGE
