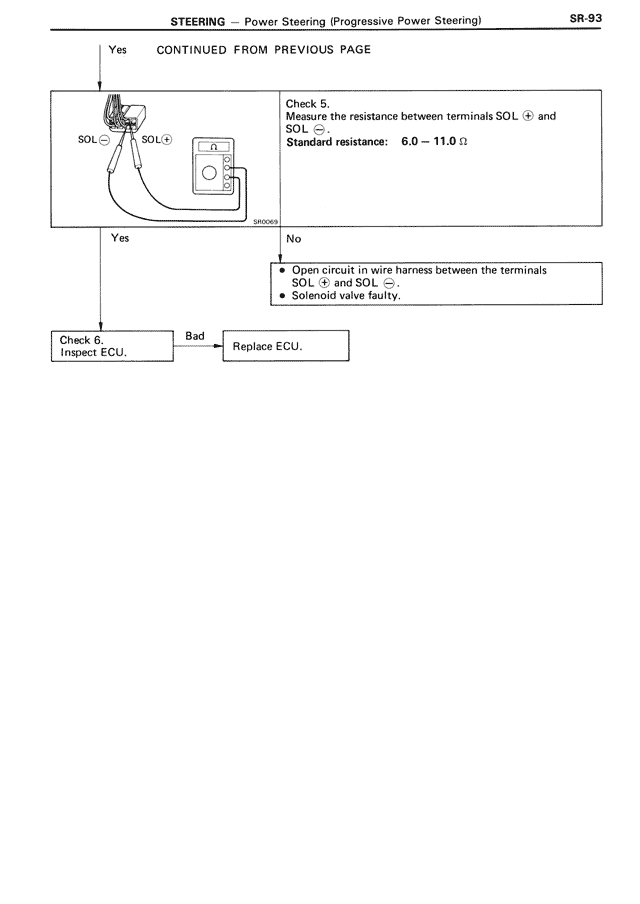

STEERING — Power Steering (Progressive Power Steering) SR-93
Yes CONTINUED FROM PREVIOUS PAGE
[Diagram showing solenoid connections SOL⊕ and SOL⊖ with measuring device]
Check 5.
Measure the resistance between terminals SOL ⊕ and SOL ⊖.
Standard resistance: 6.0 ~ 11.0 Ω
SR0058
Yes No
• Open circuit in wire harness between the terminals
SOL ⊕ and SOL ⊖.
• Solenoid valve faulty.
Check 6.
Inspect ECU. Bad → Replace ECU.
