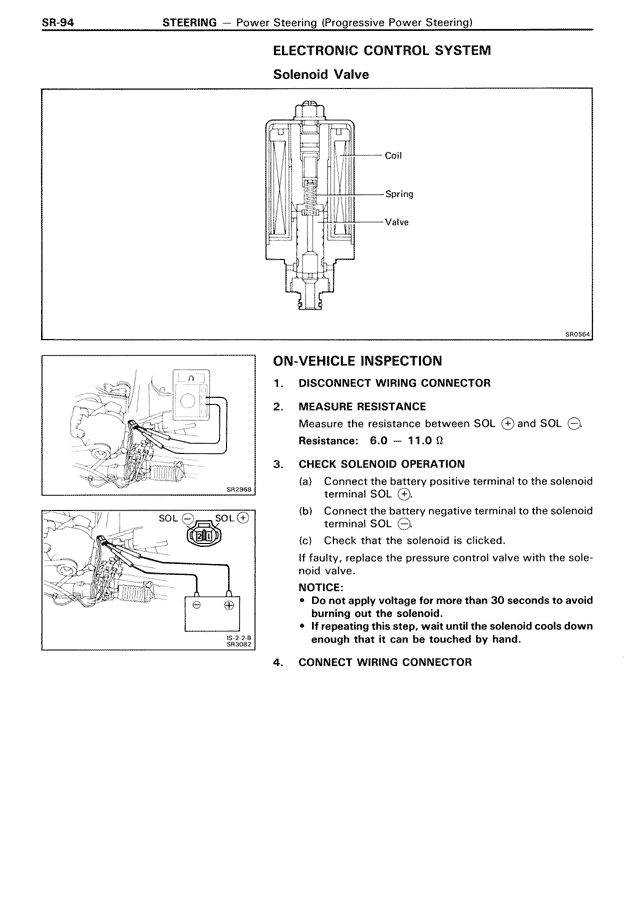

ELECTRONIC CONTROL SYSTEM
Solenoid Valve
[Diagram showing solenoid valve with labeled parts: Coil, Spring, Valve]
ON-VEHICLE INSPECTION
1. DISCONNECT WIRING CONNECTOR
2. MEASURE RESISTANCE
Measure the resistance between SOL ⊕ and SOL ⊖.
Resistance: 6.0 — 11.0 Ω
3. CHECK SOLENOID OPERATION
(a) Connect the battery positive terminal to the solenoid terminal SOL ⊕.
(b) Connect the battery negative terminal to the solenoid terminal SOL ⊖.
(c) Check that the solenoid is clicked.
If faulty, replace the pressure control valve with the solenoid valve.
NOTICE:
• Do not apply voltage for more than 30 seconds to avoid damaging the solenoid.
• If repeating this step, wait until the solenoid cools down enough that it can be touched by hand.
4. CONNECT WIRING CONNECTOR
