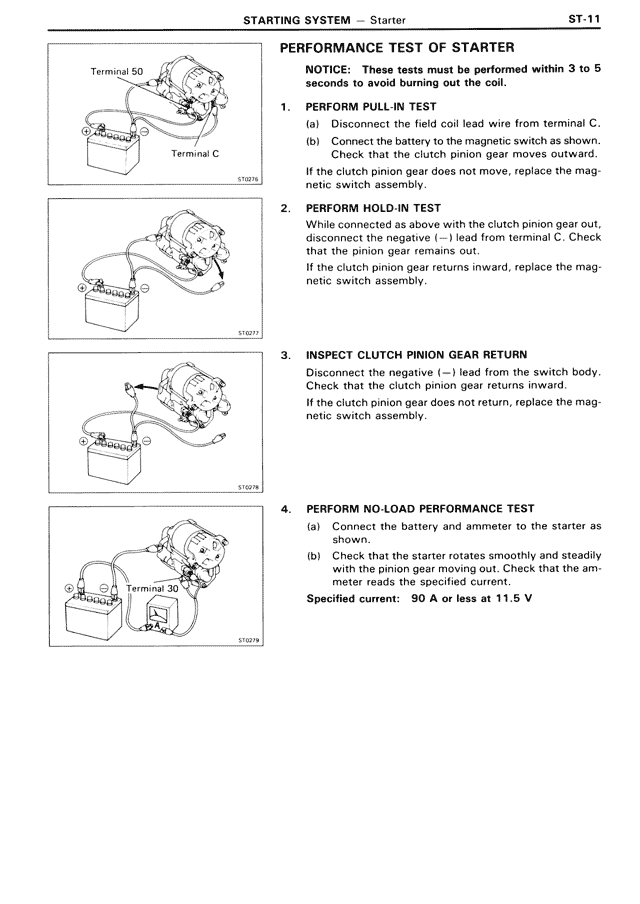

PERFORMANCE TEST OF STARTER
NOTICE: These tests must be performed within 3 to 5 seconds to avoid burning out the coil.
1. PERFORM PULL-IN TEST
(a) Disconnect the field coil lead wire from terminal C.
(b) Connect the battery to the magnetic switch as shown. Check that the clutch pinion gear moves outward.
If the clutch pinion gear does not move, replace the magnetic switch assembly.
2. PERFORM HOLD-IN TEST
While connected as above with the clutch pinion gear out, disconnect the negative (−) lead from terminal C. Check that the pinion gear remains out.
If the clutch pinion gear returns inward, replace the magnetic switch assembly.
3. INSPECT CLUTCH PINION GEAR RETURN
Disconnect the negative (−) lead from the switch body. Check that the clutch pinion gear returns inward.
If the clutch pinion gear does not return, replace the magnetic switch assembly.
4. PERFORM NO-LOAD PERFORMANCE TEST
(a) Connect the battery and ammeter to the starter as shown.
(b) Check that the starter rotates smoothly and steadily with the pinion gear moving out. Check that the ammeter reads the specified current.
Specified current: 90 A or less at 11.5 V
