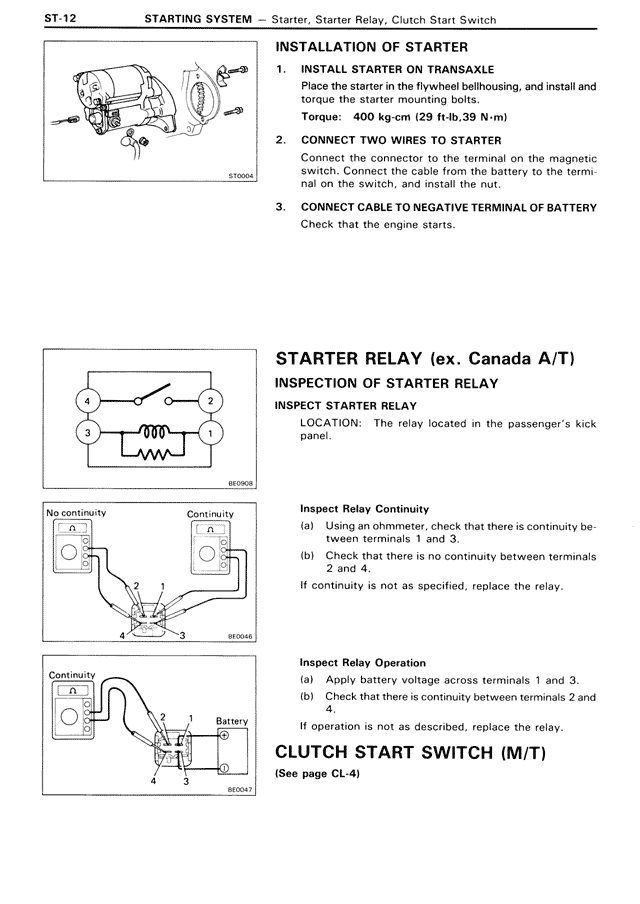

ST-12 STARTING SYSTEM — Starter, Starter Relay, Clutch Start Switch
INSTALLATION OF STARTER
1. INSTALL STARTER ON TRANSAXLE
Place the starter in the flywheel bellhousing, and install and
torque the starter mounting bolts.
Torque: 400 kg-cm (29 ft-lb, 39 N-m)
2. CONNECT TWO WIRES TO STARTER
Connect the connector to the terminal on the magnetic
switch. Connect the cable from the battery to the terminal on the switch, and install the nut.
3. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
Check that the engine starts.
STARTER RELAY (ex. Canada A/T)
INSPECTION OF STARTER RELAY
INSPECT STARTER RELAY
LOCATION: The relay located in the passenger's kick
panel.
Inspect Relay Continuity
(a) Using an ohmmeter, check that there is continuity between terminals 1 and 3.
(b) Check that there is no continuity between terminals
2 and 4.
If continuity is not as specified, replace the relay.
Inspect Relay Operation
(a) Apply battery voltage across terminals 1 and 3.
(b) Check that there is continuity between terminals 2 and
4.
If operation is not as described, replace the relay.
CLUTCH START SWITCH (M/T)
(See page CL-4)
