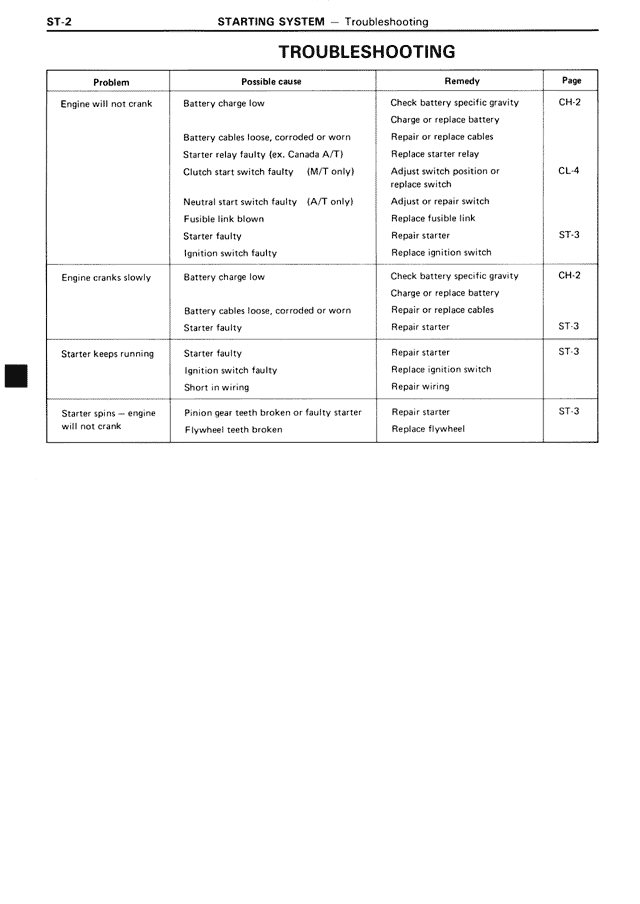

TROUBLESHOOTING
Problem | Possible cause | Remedy | Page
Engine will not crank | Battery charge low | Check battery specific gravity | CH-2
| | Charge or replace battery |
| Battery cables loose, corroded or worn | Repair or replace cables |
| Starter relay faulty (ex. Canada A/T) | Replace starter relay |
| Clutch start switch faulty (M/T only) | Adjust switch position or | CL-4
| | replace switch |
| Neutral start switch faulty (A/T only) | Adjust or repair switch |
| Fusible link faulty | Replace fusible link |
| Starter faulty | Repair starter | ST-3
| Ignition switch faulty | Replace ignition switch |
Engine cranks slowly | Battery charge low | Check battery specific gravity | CH-2
| | Charge or replace battery |
| Battery cables loose, corroded or worn | Repair or replace cables |
| Starter faulty | Repair starter | ST-3
Starter keeps running | Starter faulty | Repair starter | ST-3
| Ignition switch faulty | Replace ignition switch |
| Short in wiring | Repair wiring |
Starter spins — engine will not crank | Pinion gear teeth broken or faulty starter | Repair starter | ST-3
| Flywheel teeth broken | Replace flywheel |
