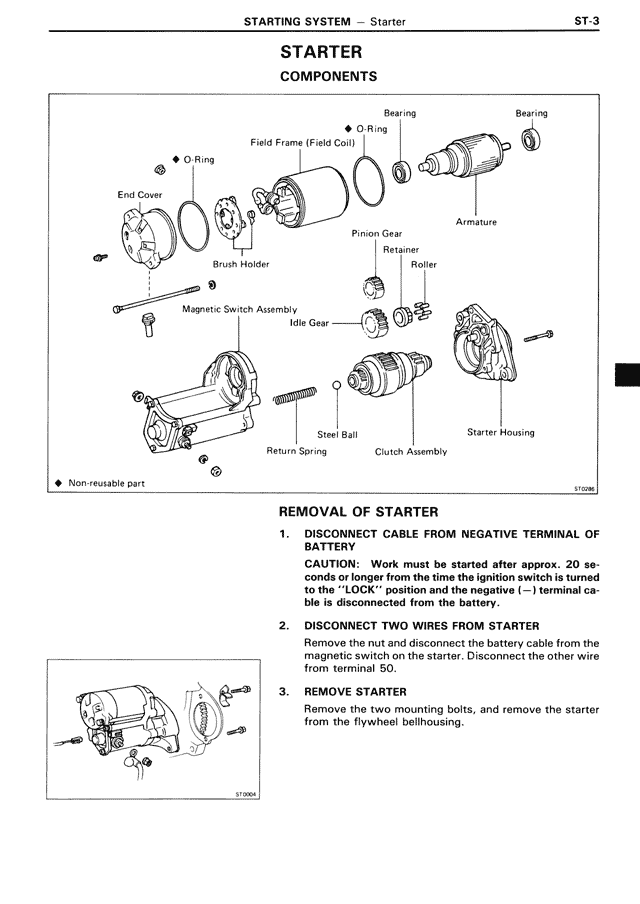

STARTER
COMPONENTS
Bearing
O Ring
Bearing
Field Frame (Field Coil)
O Ring
End Cover
Armature
Pinion Gear
Retainer
Brush Holder
Roller
Magnetic Switch Assembly
Idle Gear
Steel Ball
Starter Housing
Return Spring
Clutch Assembly
♦ Non-reusable part
ST0062
REMOVAL OF STARTER
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY
CAUTION: Work must be started after approx. 20 seconds or longer from the time the ignition switch is turned to the "LOCK" position and the negative (—) terminal cable is disconnected from the battery.
2. DISCONNECT TWO WIRES FROM STARTER
Remove the nut and disconnect the battery cable from the magnetic switch on the starter. Disconnect the other wire from terminal 50.
3. REMOVE STARTER
Remove the two mounting bolts, and remove the starter from the flywheel bellhousing.
ST0064
