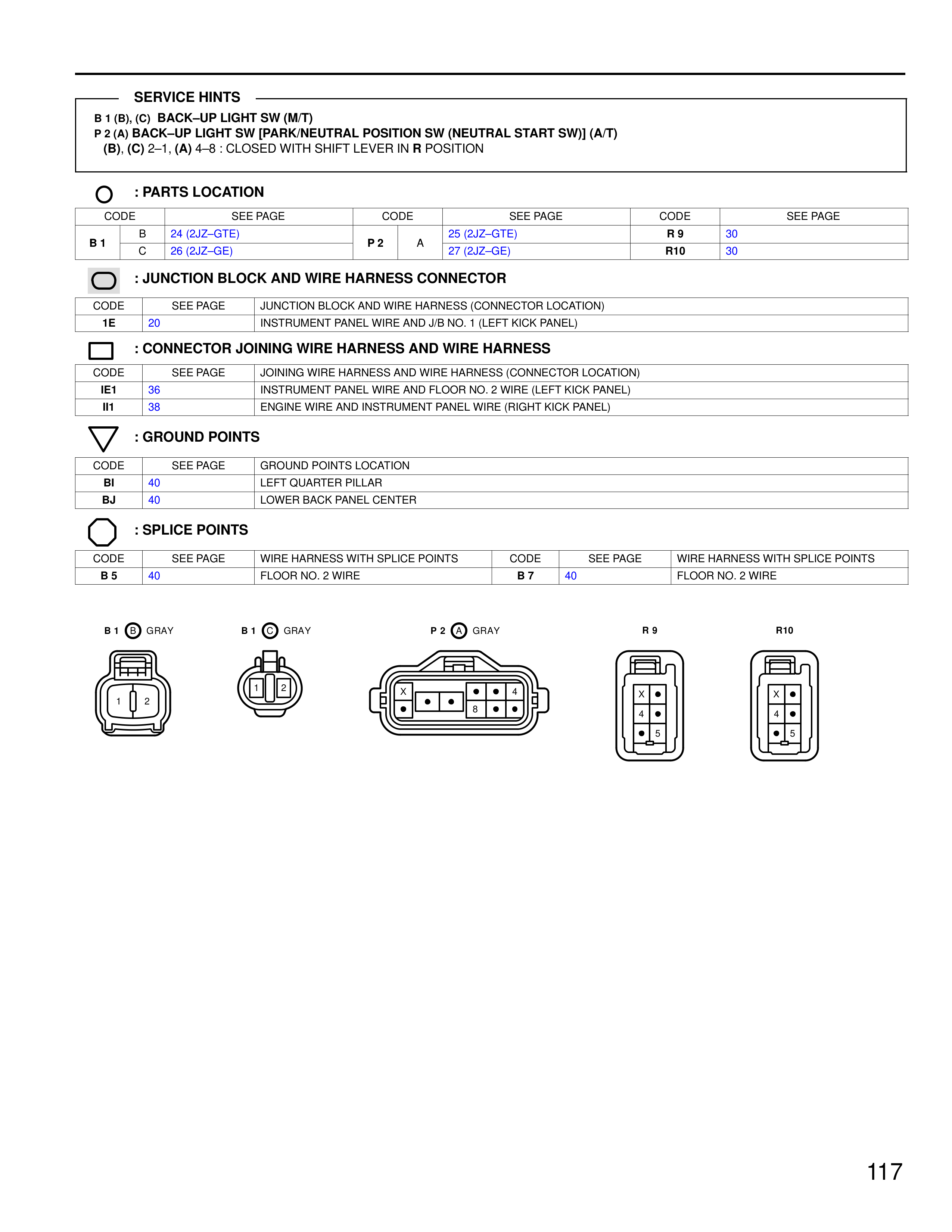

SERVICE HINTS B 1 (B), (C) BACK–UP LIGHT SW (M/T) P 2 (A) BACK–UP LIGHT SW [PARK/NEUTRAL POSITION SW (NEUTRAL START SW)] (A/T) (B), (C) 2–1, (A) 4–8 : CLOSED WITH SHIFT LEVER IN R POSITION : PARTS LOCATION CODE | SEE PAGE | CODE | SEE PAGE | CODE | SEE PAGE B 1 | B | 24 (2JZ–GTE) | P 2 | A | 25 (2JZ–GTE) | R 9 | 30 | C | 26 (2JZ–GE) | | | 27 (2JZ–GE) | R10 | 30 : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR CODE | SEE PAGE | JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION) 1E | 20 | INSTRUMENT PANEL WIRE AND J/B NO. 1 (LEFT KICK PANEL) : CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS CODE | SEE PAGE | JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) IE1 | 36 | INSTRUMENT PANEL WIRE AND FLOOR NO. 2 WIRE (LEFT KICK PANEL) II1 | 38 | ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL) : GROUND POINTS CODE | SEE PAGE | GROUND POINTS LOCATION BI | 40 | LEFT QUARTER PILLAR BJ | 40 | LOWER BACK PANEL CENTER : SPLICE POINTS CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS B 5 | 40 | FLOOR NO. 2 WIRE | B 7 | 40 | FLOOR NO. 2 WIRE B 1 B GRAY B 1 C GRAY P 2 A GRAY R 9 R10
