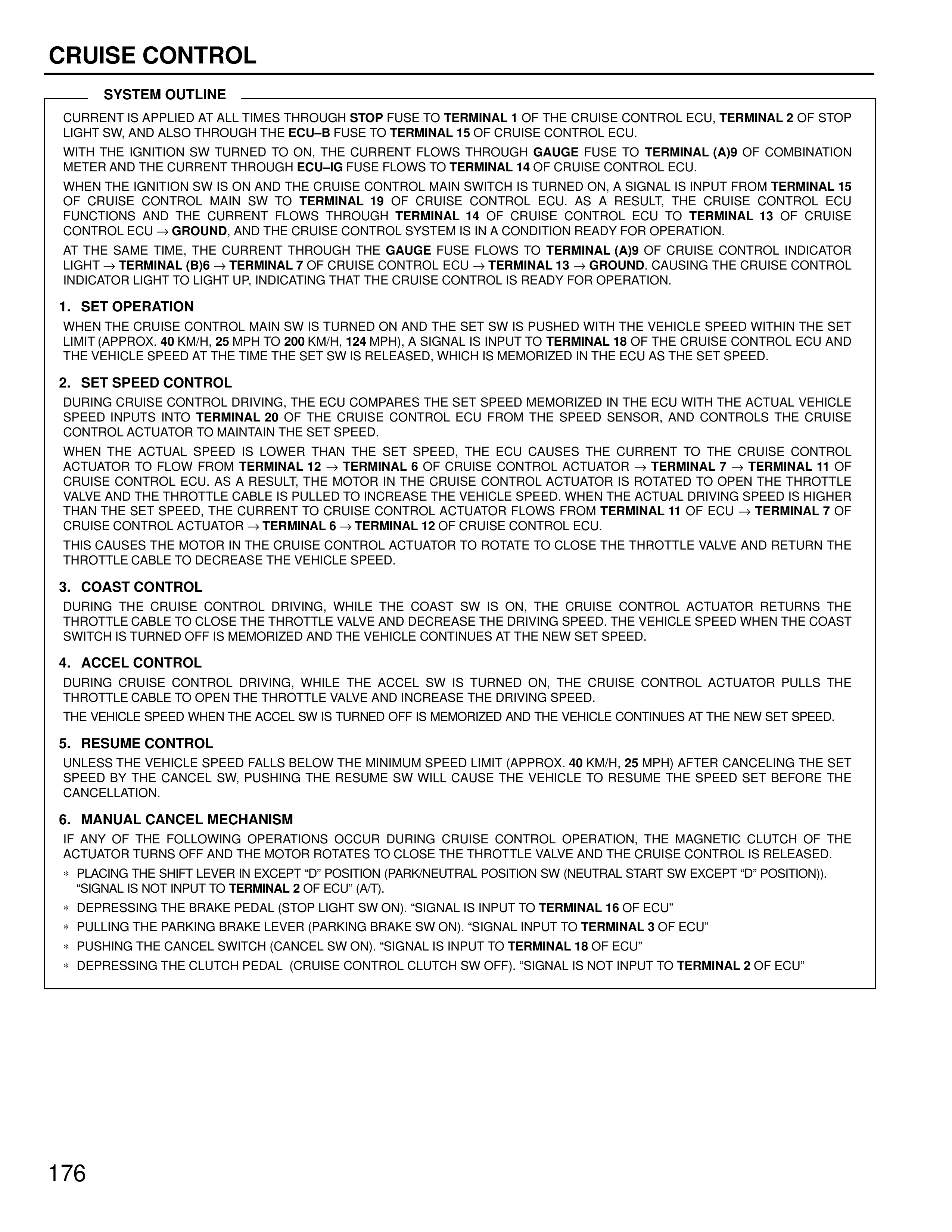

CRUISE CONTROL\n\nSYSTEM OUTLINE\n\nCURRENT IS APPLIED AT ALL TIMES THROUGH STOP FUSE TO TERMINAL 1 OF THE CRUISE CONTROL ECU, TERMINAL 2 OF STOP LIGHT SW, AND ALSO THROUGH THE ECU–B FUSE TO TERMINAL 15 OF CRUISE CONTROL ECU.\n\nWITH THE IGNITION SW TURNED TO ON, THE CURRENT FLOWS THROUGH GAUGE FUSE TO TERMINAL (A)9 OF COMBINATION METER AND THE CURRENT THROUGH ECU–IG FUSE FLOWS TO TERMINAL 14 OF CRUISE CONTROL ECU.\n\nWHEN THE IGNITION SW IS ON AND THE CRUISE CONTROL MAIN SWITCH IS TURNED ON, A SIGNAL IS INPUT FROM TERMINAL 15 OF CRUISE CONTROL MAIN SW TO TERMINAL 19 OF CRUISE CONTROL ECU. AS A RESULT, THE CRUISE CONTROL ECU FUNCTIONS AND THE CURRENT FLOWS THROUGH TERMINAL 14 OF CRUISE CONTROL ECU TO TERMINAL 13 OF CRUISE CONTROL ECU → GROUND, AND THE CRUISE CONTROL SYSTEM IS IN A CONDITION READY FOR OPERATION.\n\nAT THE SAME TIME, THE CURRENT THROUGH THE GAUGE FUSE FLOWS TO TERMINAL (A)9 OF CRUISE CONTROL INDICATOR LIGHT → TERMINAL (B)6 → TERMINAL 7 OF CRUISE CONTROL ECU → TERMINAL 13 → GROUND, CAUSING THE CRUISE CONTROL INDICATOR LIGHT TO LIGHT UP, INDICATING THAT THE CRUISE CONTROL IS READY FOR OPERATION.\n\n1. SET OPERATION\n\nWHEN THE CRUISE CONTROL MAIN SW IS TURNED ON AND THE SET SW IS PUSHED WITH THE VEHICLE SPEED WITHIN THE SET LIMIT (APPROX. 40 KM/H, 25 MPH TO 200 KM/H, 124 MPH), A SIGNAL IS INPUT TO TERMINAL 18 OF THE CRUISE CONTROL ECU AND THE VEHICLE SPEED AT THE TIME THE SET SW IS RELEASED, WHICH IS MEMORIZED IN THE ECU AS THE SET SPEED.\n\n2. SET SPEED CONTROL\n\nDURING CRUISE CONTROL DRIVING, THE ECU COMPARES THE SET SPEED MEMORIZED IN THE ECU WITH THE ACTUAL VEHICLE SPEED INPUTS INTO TERMINAL 20 OF THE CRUISE CONTROL ECU FROM THE SPEED SENSOR, AND CONTROLS THE CRUISE CONTROL ACTUATOR TO MAINTAIN THE SET SPEED.\n\nWHEN THE ACTUAL SPEED IS LOWER THAN THE SET SPEED, THE ECU CAUSES THE CURRENT TO THE CRUISE CONTROL ACTUATOR TO FLOW FROM TERMINAL 12 → TERMINAL 6 OF CRUISE CONTROL ACTUATOR → TERMINAL 7 → TERMINAL 11 OF CRUISE CONTROL ECU. AS A RESULT, THE MOTOR IN THE CRUISE CONTROL ACTUATOR IS ROTATED TO OPEN THE THROTTLE VALVE AND THE THROTTLE CABLE IS PULLED TO INCREASE THE VEHICLE SPEED. WHEN THE ACTUAL DRIVING SPEED IS HIGHER THAN THE SET SPEED, THE CURRENT TO CRUISE CONTROL ACTUATOR FLOWS FROM TERMINAL 11 OF ECU → TERMINAL 7 OF CRUISE CONTROL ACTUATOR → TERMINAL 6 → TERMINAL 12 OF CRUISE CONTROL ECU.\n\nTHIS CAUSES THE MOTOR IN THE CRUISE CONTROL ACTUATOR TO ROTATE TO CLOSE THE THROTTLE VALVE AND RETURN THE THROTTLE CABLE TO DECREASE THE VEHICLE SPEED.\n\n3. COAST CONTROL\n\nDURING THE CRUISE CONTROL DRIVING, WHILE THE COAST SW IS ON, THE CRUISE CONTROL ACTUATOR RETURNS THE THROTTLE CABLE TO CLOSE THE THROTTLE VALVE AND DECREASE THE DRIVING SPEED. THE VEHICLE SPEED WHEN THE COAST SWITCH IS TURNED OFF IS MEMORIZED AND THE VEHICLE CONTINUES AT THE NEW SET SPEED.\n\n4. ACCEL CONTROL\n\nDURING CRUISE CONTROL DRIVING, WHILE THE ACCEL SW IS TURNED ON, THE CRUISE CONTROL ACTUATOR PULLS THE THROTTLE CABLE TO OPEN THE THROTTLE VALVE AND INCREASE THE DRIVING SPEED.\n\nTHE VEHICLE SPEED WHEN THE ACCEL SW IS TURNED OFF IS MEMORIZED AND THE VEHICLE CONTINUES AT THE NEW SET SPEED.\n\n5. RESUME CONTROL\n\nUNLESS THE VEHICLE SPEED FALLS BELOW THE MINIMUM SPEED LIMIT (APPROX. 40 KM/H, 25 MPH) AFTER CANCELING THE SET SPEED BY THE CANCEL SW, PUSHING THE RESUME SW WILL CAUSE THE VEHICLE TO RESUME THE SPEED SET BEFORE THE CANCELLATION.\n\n6. MANUAL CANCEL MECHANISM\n\nIF ANY OF THE FOLLOWING OPERATIONS OCCUR DURING CRUISE CONTROL OPERATION, THE MAGNETIC CLUTCH OF THE ACTUATOR TURNS OFF AND THE MOTOR ROTATES TO CLOSE THE THROTTLE VALVE AND THE CRUISE CONTROL IS RELEASED.\n\n• PLACING THE SHIFT LEVER IN EXCEPT \"D\" POSITION (PARK/NEUTRAL POSITION (SW (NEUTRAL START SW EXCEPT \"D\" POSITION)), \"SIGNAL IS NOT INPUT TO TERMINAL 2 OF ECU\" (A/T).\n\n• DEPRESSING THE BRAKE PEDAL (STOP LIGHT SW ON), \"SIGNAL IS INPUT TO TERMINAL 16 OF ECU\"\n\n• PULLING THE PARKING BRAKE LEVER (PARKING BRAKE SW ON), \"SIGNAL INPUT TO TERMINAL 3 OF ECU\"\n\n• PUSHING THE CANCEL SWITCH (CANCEL SW ON), \"SIGNAL IS INPUT TO TERMINAL 18 OF ECU\"\n\n• DEPRESSING THE CLUTCH PEDAL (CRUISE CONTROL CLUTCH SW OFF), \"SIGNAL IS NOT INPUT TO TERMINAL 2 OF ECU\"\n\n176
