CC
/
Cruise Control
7 / 8
p.008 →
−
100%
+

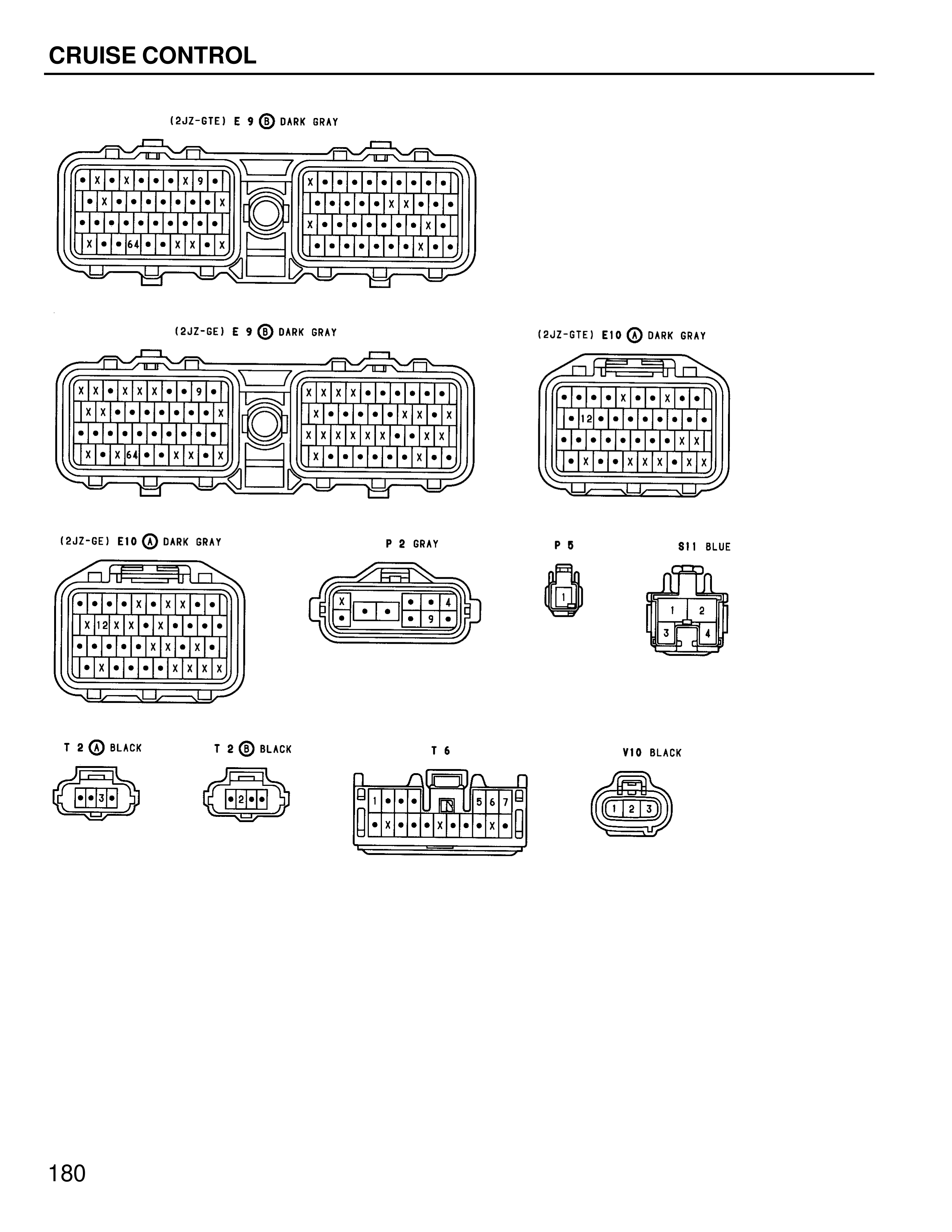

CRUISE CONTROL (2JZ-GTE) E 9 D DARK GRAY (2JZ-GE) E 9 D DARK GRAY (2JZ-GTE) E10 D DARK GRAY (2JZ-GE) E10 D DARK GRAY P 2 GRAY P 6 S11 BLUE T 2 D BLACK T 2 C BLACK T 6 V10 BLACK 180
