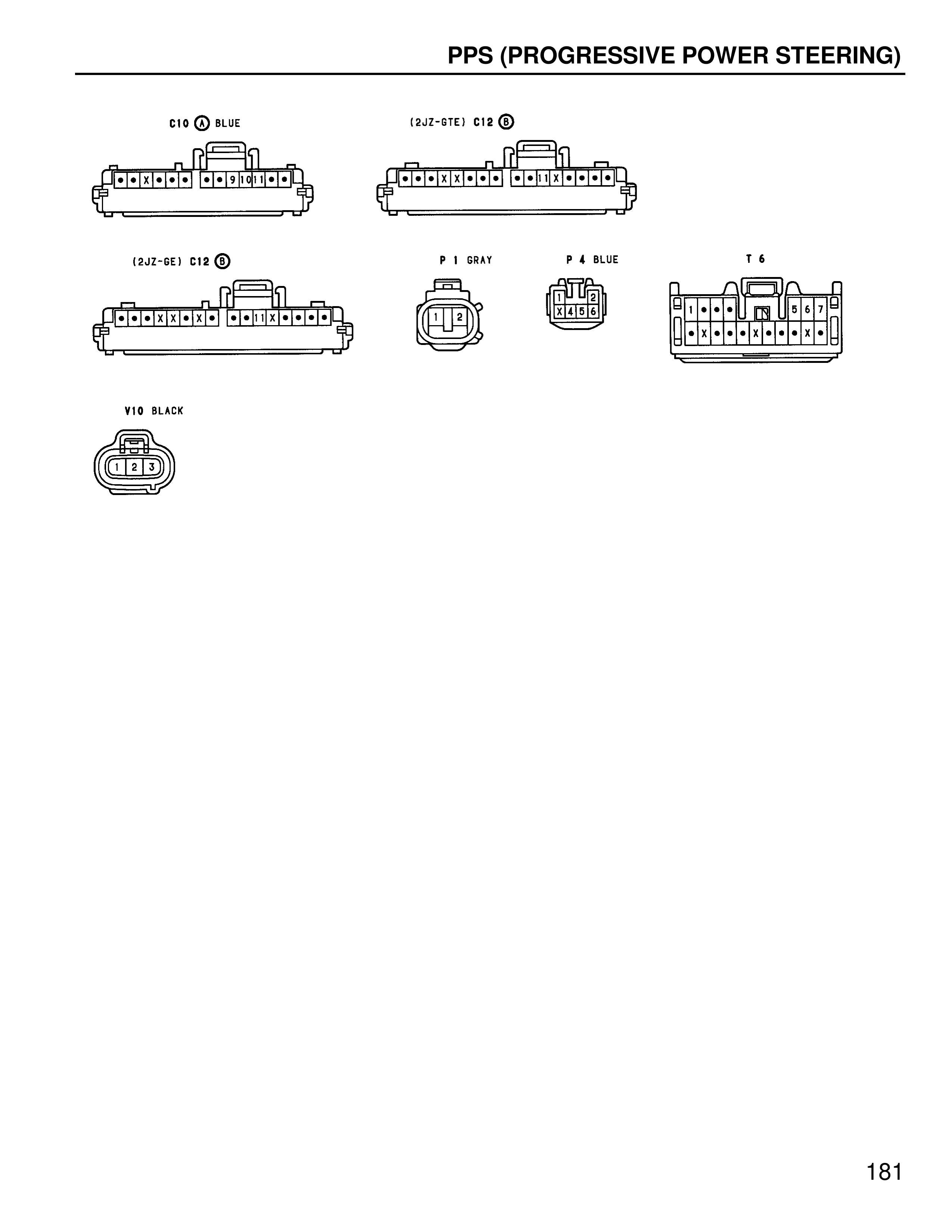

PPS (PROGRESSIVE POWER STEERING)
C10 BLUE
(2JZ-GTE) C12 B
(2JZ-GE) C12 D
P 1 GRAY
P 4 BLUE
T 6
V10 BLACK
C10 BLUE connector showing pins with some marked with X and numbered positions 9
(2JZ-GTE) C12 B connector showing pins with X markers and numbered positions
(2JZ-GE) C12 D connector showing pins with X markers and numbered positions
P 1 GRAY connector showing 2-pin configuration numbered 1 2
P 4 BLUE connector showing 4-pin configuration numbered 1 2 3 4
T 6 connector showing multi-pin configuration with numbered positions 1-9
V10 BLACK connector showing 3-pin configuration numbered 1 2 3
181
