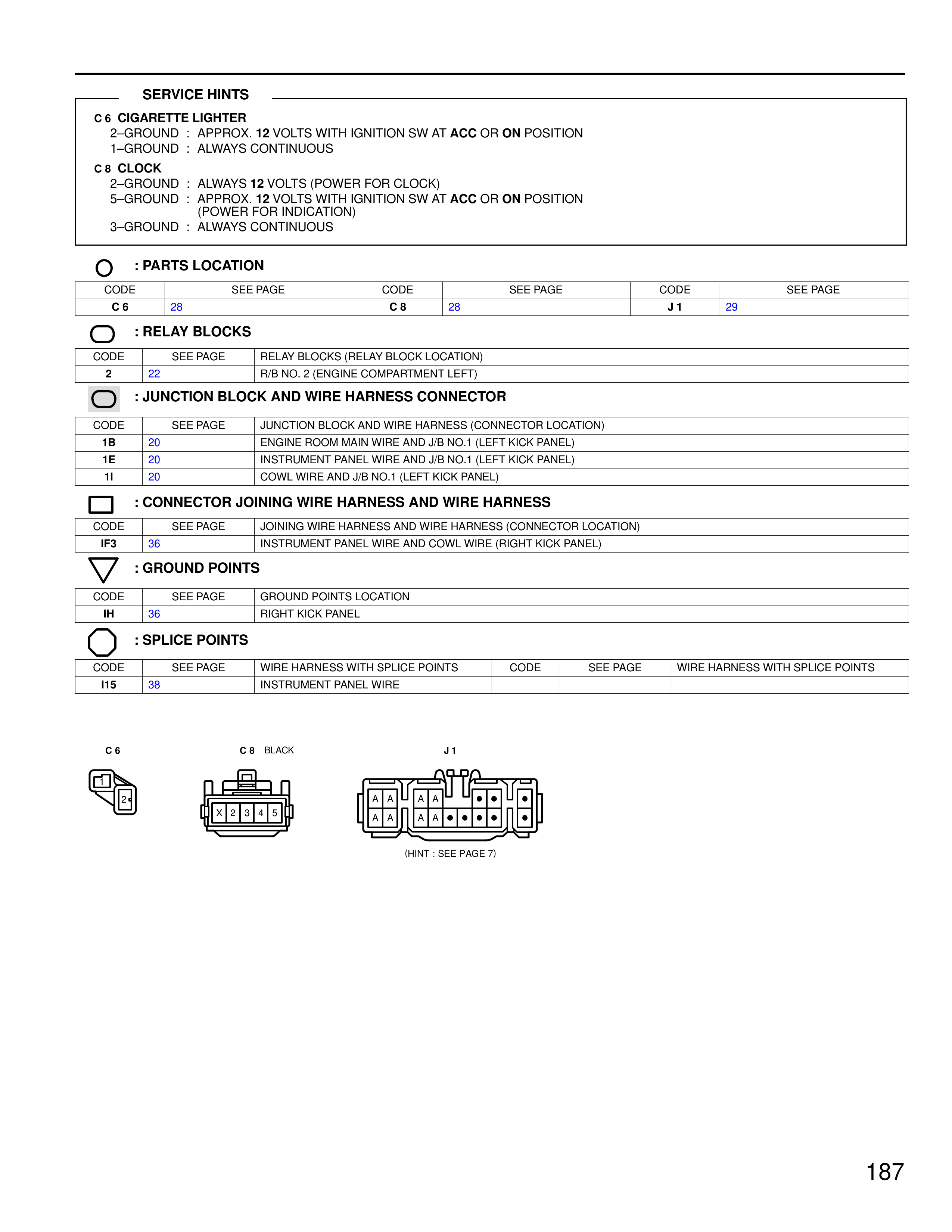

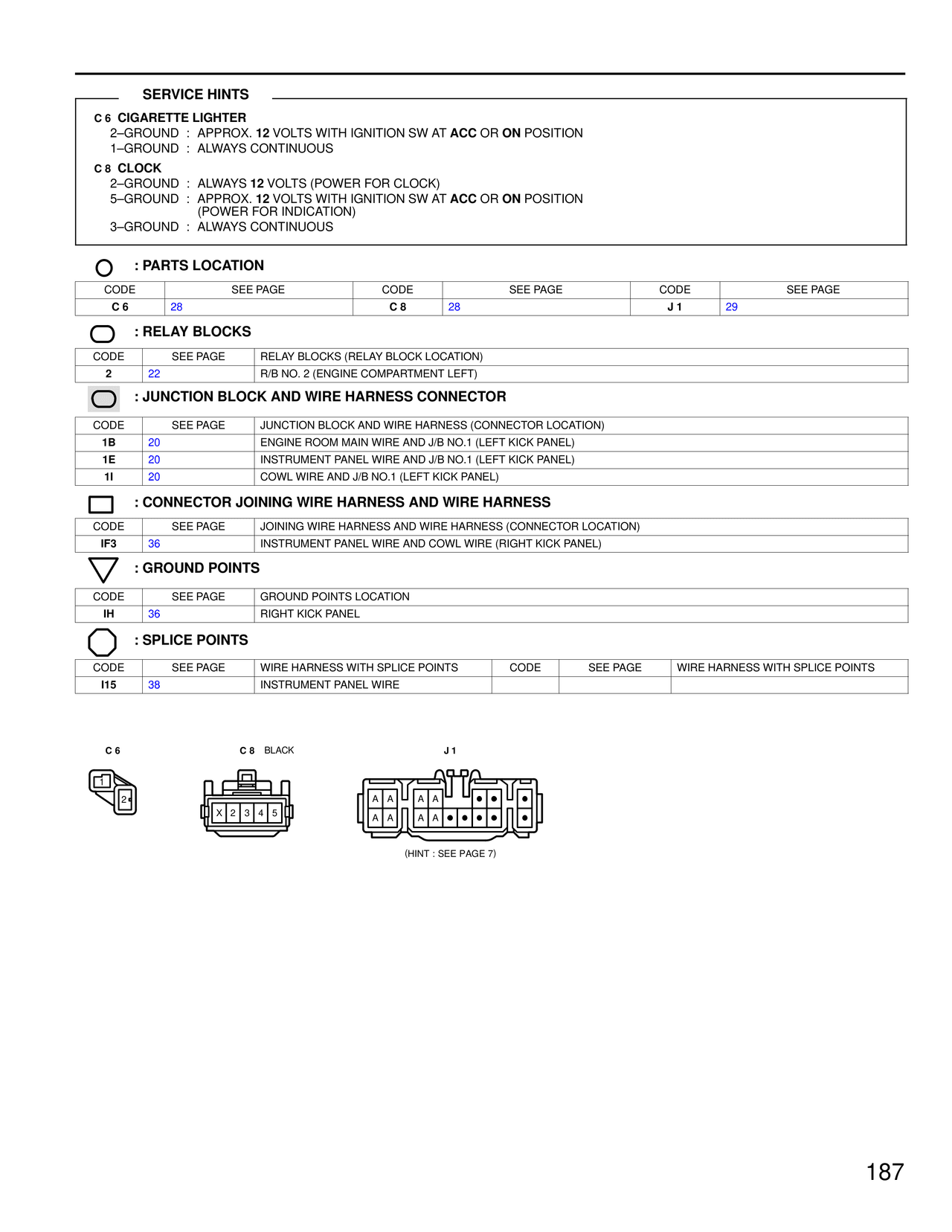

CIGC/Cigarette Lighter and Clock — Cigarette Lighter and Clock - Parts Location, Relay Blocks, Junction Blocks, Connectors, Ground Points, Splice Points, page 2

SERVICE HINTS

C 6 CIGARETTE LIGHTER
2–GROUND : APPROX. 12 VOLTS WITH IGNITION SW AT ACC OR ON POSITION
1–GROUND : ALWAYS CONTINUOUS

C 8 CLOCK
2–GROUND : ALWAYS 12 VOLTS (POWER FOR CLOCK)
5–GROUND : APPROX. 12 VOLTS WITH IGNITION SW AT ACC OR ON POSITION
(POWER FOR INDICATION)
3–GROUND : ALWAYS CONTINUOUS

: PARTS LOCATION

CODE | SEE PAGE | CODE | SEE PAGE | CODE | SEE PAGE
C 6 | 28 | C 8 | 28 | J 1 | 29

: RELAY BLOCKS

CODE | SEE PAGE | RELAY BLOCKS (RELAY BLOCK LOCATION)
2 | 22 | R/B NO. 2 (ENGINE COMPARTMENT LEFT)

: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

CODE | SEE PAGE | JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1B | 20 | ENGINE ROOM MAIN WIRE AND J/B NO.1 (LEFT KICK PANEL)
1E | 20 | INSTRUMENT PANEL WIRE AND J/B NO.1 (LEFT KICK PANEL)
1I | 20 | COWL WIRE AND J/B NO.1 (LEFT KICK PANEL)

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS

CODE | SEE PAGE | JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
IF3 | 36 | INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT KICK PANEL)

: GROUND POINTS

CODE | SEE PAGE | GROUND POINTS LOCATION
IH | 36 | RIGHT KICK PANEL

: SPLICE POINTS

CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS
I15 | 38 | INSTRUMENT PANEL WIRE

C 6

C 8 BLACK

J 1

(HINT : SEE PAGE 7)

187
