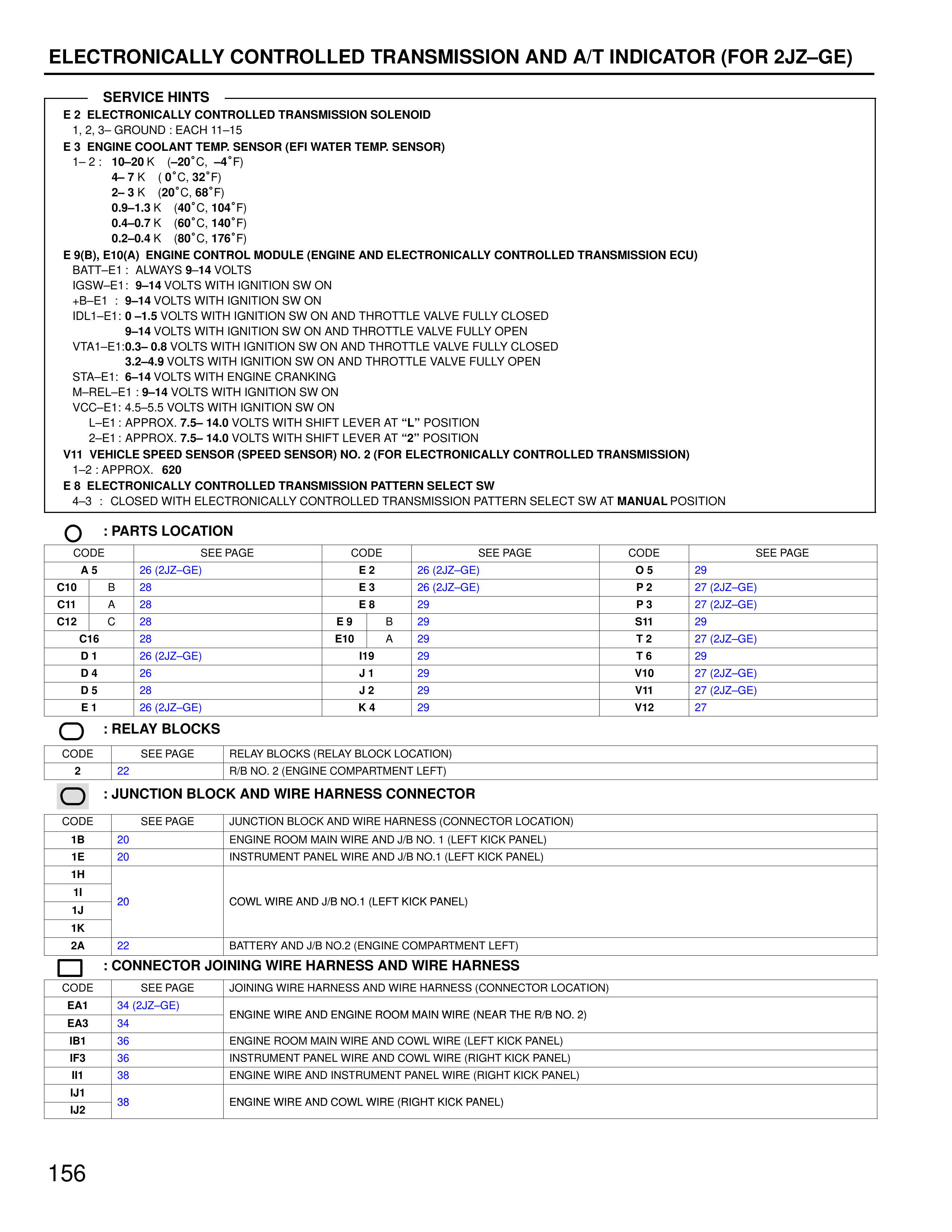

ELECTRONICALLY CONTROLLED TRANSMISSION AND A/T INDICATOR (FOR 2JZ–GE)\n\nSERVICE HINTS\n\nE 2 ELECTRONICALLY CONTROLLED TRANSMISSION SOLENOID\n1, 2, 3– GROUND : EACH 11–15\n\nE 3 ENGINE COOLANT TEMP. SENSOR (EFI WATER TEMP. SENSOR)\n1–2 : 10–20 K (–20˚C, –4˚F)\n4–7 K ( 0˚C, 32˚F)\n2–3 K (20˚C, 68˚F)\n0.9–1.3 K (40˚C, 104˚F)\n0.4–0.7 K (60˚C, 140˚F)\n0.2–0.4 K (80˚C, 176˚F)\n\nE 9(B), E10(A) ENGINE CONTROL MODULE (ENGINE AND ELECTRONICALLY CONTROLLED TRANSMISSION ECU)\nBATT–E1 : ALWAYS 9–14 VOLTS\nIGSW–E1: 9–14 VOLTS WITH IGNITION SW ON\n+B–E1 : 9–14 VOLTS WITH IGNITION SW ON\nIDL1–E1: 0 –1.5 VOLTS WITH IGNITION SW ON AND THROTTLE VALVE FULLY CLOSED\n9–14 VOLTS WITH IGNITION SW ON AND THROTTLE VALVE FULLY OPEN\nVTA1–E1:0.3– 0.8 VOLTS WITH IGNITION SW ON AND THROTTLE VALVE FULLY CLOSED\n3.2–4.9 VOLTS WITH IGNITION SW ON AND THROTTLE VALVE FULLY OPEN\nSTA–E1: 6–14 VOLTS WITH ENGINE CRANKING\nM–REL–E1 : 9–14 VOLTS WITH IGNITION SW ON\nVCC–E1: 4.5–5.5 VOLTS WITH IGNITION SW ON\nL–E1 : APPROX. 7.5– 14.0 VOLTS WITH SHIFT LEVER AT \"L\" POSITION\n2–E1 : APPROX. 7.5– 14.0 VOLTS WITH SHIFT LEVER AT \"2\" POSITION\n\nV11 VEHICLE SPEED SENSOR (SPEED SENSOR) NO. 2 (FOR ELECTRONICALLY CONTROLLED TRANSMISSION)\n1–2 : APPROX. 6/20\n\nE 8 ELECTRONICALLY CONTROLLED TRANSMISSION PATTERN SELECT SW\n4–3 : CLOSED WITH ELECTRONICALLY CONTROLLED TRANSMISSION PATTERN SELECT SW AT MANUAL POSITION\n\n: PARTS LOCATION\n\nCODE SEE PAGE CODE SEE PAGE CODE SEE PAGE\nA 5 26 (2JZ–GE) E 2 26 (2JZ–GE) O 5 29\nC10 B 28 E 3 26 (2JZ–GE) P 2 27 (2JZ–GE)\nC11 A 28 E 8 29 P 3 27 (2JZ–GE)\nC12 C 28 E 9 B 29 S11 29\nC16 28 E10 A 29 T 2 27 (2JZ–GE)\nD 1 26 (2JZ–GE) I19 29 T 6 29\nD 4 26 J 1 29 V10 27 (2JZ–GE)\nD 5 28 J 2 29 V11 27 (2JZ–GE)\nE 1 26 (2JZ–GE) K 4 29 V12 27\n\n: RELAY BLOCKS\n\nCODE SEE PAGE RELAY BLOCKS (RELAY BLOCK LOCATION)\n2 22 R/B NO. 2 (ENGINE COMPARTMENT LEFT)\n\n: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR\n\nCODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)\n1B 20 ENGINE ROOM MAIN WIRE AND J/B NO. 1 (LEFT KICK PANEL)\n1E 20 INSTRUMENT PANEL WIRE AND J/B NO.1 (LEFT KICK PANEL)\n1H\n1I\n1J 20 COWL WIRE AND J/B NO.1 (LEFT KICK PANEL)\n1K\n2A 22 BATTERY AND J/B NO.2 (ENGINE COMPARTMENT LEFT)\n\n: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS\n\nCODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)\nEA1 34 (2JZ–GE) ENGINE WIRE AND ENGINE ROOM MAIN WIRE (NEAR THE R/B NO. 2)\nEA3 34\nIB1 36 ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL)\nIF3 36 INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT KICK PANEL)\nII1 38 ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)\nIJ1 38 ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL)\nIJ2\n\n156
