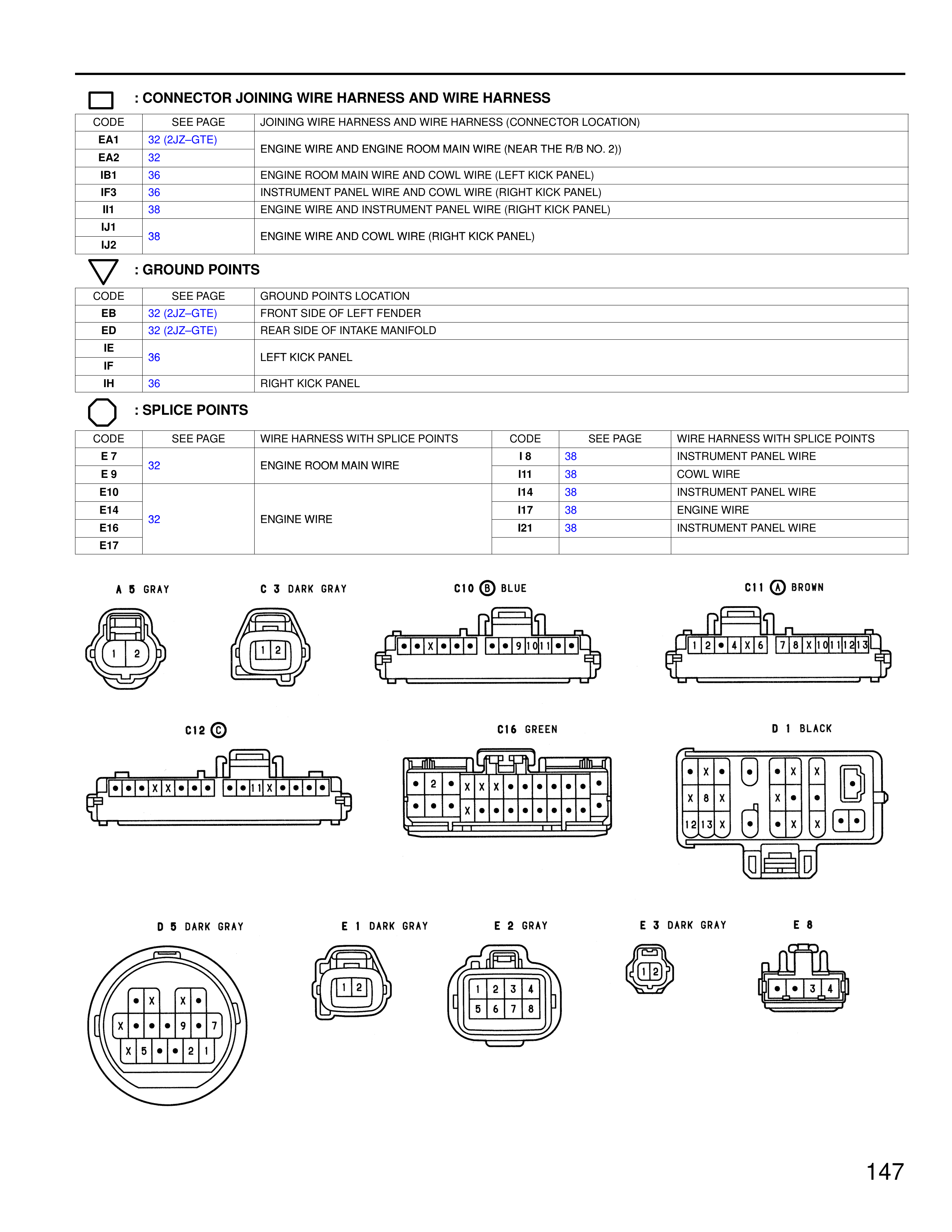

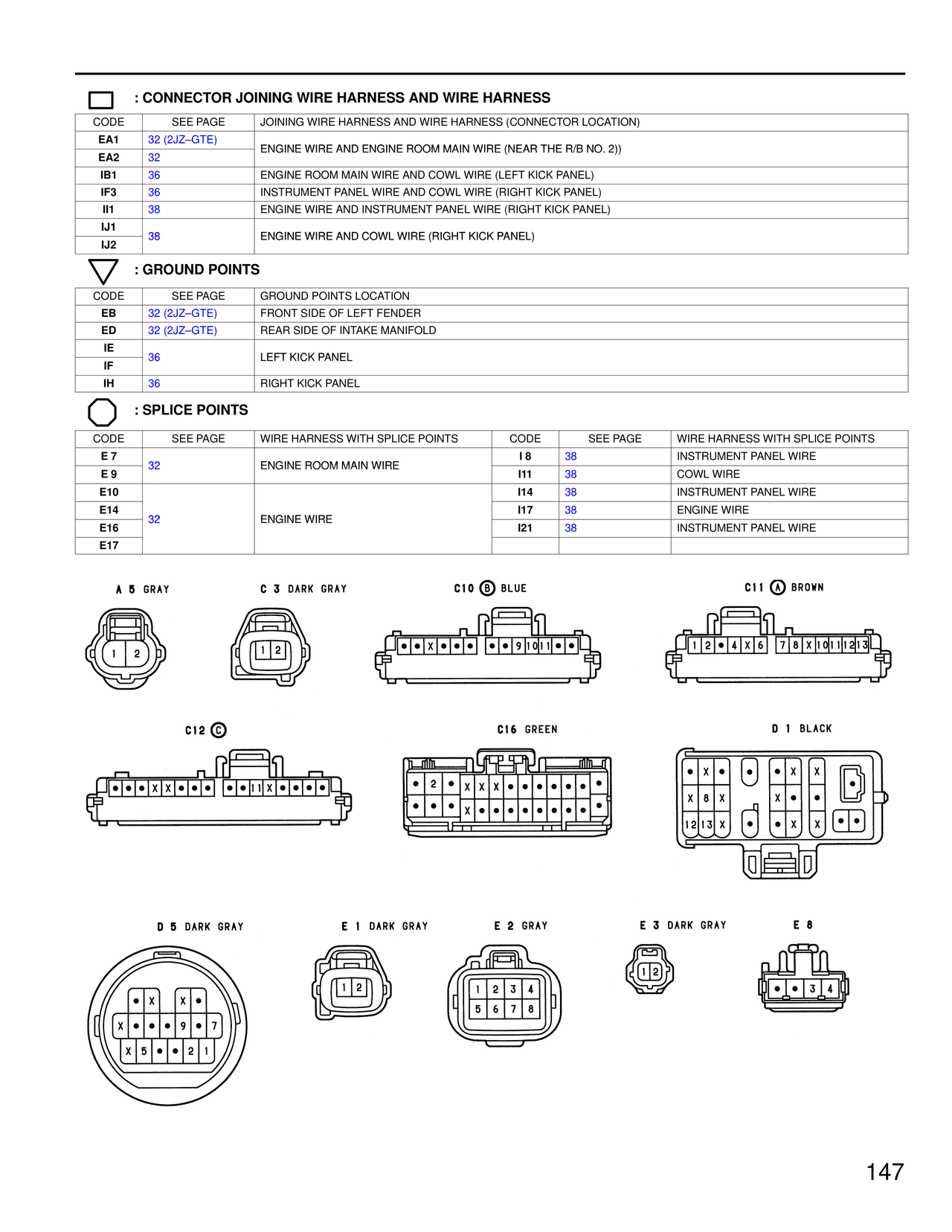

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS CODE | SEE PAGE | JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION) EA1 | 32 (2JZ-GTE) | ENGINE WIRE AND ENGINE ROOM MAIN WIRE (NEAR THE R/B NO. 2)) EA2 | 32 IB1 | 36 | ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL) IF3 | 36 | INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT KICK PANEL) II1 | 38 | ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL) IJ1 | 38 | ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL) IJ2 : GROUND POINTS CODE | SEE PAGE | GROUND POINTS LOCATION EB | 32 (2JZ-GTE) | FRONT SIDE OF LEFT FENDER ED | 32 (2JZ-GTE) | REAR SIDE OF INTAKE MANIFOLD IE | 36 | LEFT KICK PANEL IF | 36 | RIGHT KICK PANEL IH : SPLICE POINTS CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS E 7 | 32 | ENGINE ROOM MAIN WIRE | I 8 | 38 | INSTRUMENT PANEL WIRE E 9 | | | I11 | 38 | COWL WIRE E10 | | | I14 | 38 | INSTRUMENT PANEL WIRE E14 | 32 | ENGINE WIRE | I17 | 38 | ENGINE WIRE E16 | | | I21 | 38 | INSTRUMENT PANEL WIRE E17 A 5 GRAY | C 3 DARK GRAY | C10 ⓑ BLUE | C11 ⓑ BROWN [Connector diagram A5 with pins 1, 2] | [Connector diagram C3 with pins 1, 2] | [Connector diagram C10 with multiple pins] | [Connector diagram C11 with multiple pins] C12 ⓒ | C16 GREEN | D 1 BLACK [Connector diagram C12 with multiple pins and X markers] | [Connector diagram C16 with multiple pins, X and Y markers] | [Connector diagram D1 with pins and X markers] D 6 DARK GRAY | E 1 DARK GRAY | E 2 GRAY | E 3 DARK GRAY | E 8 [Connector diagram D6 with pins 1-7 and X markers] | [Connector diagram E1 with pins 1, 2] | [Connector diagram E2 with pins 1-8] | [Connector diagram E3] | [Connector diagram E8 with pins 1-4] 147
