← RWW
ETR
/
Electric Tension Reducer
1 / 2
p.002 →
−
100%
+

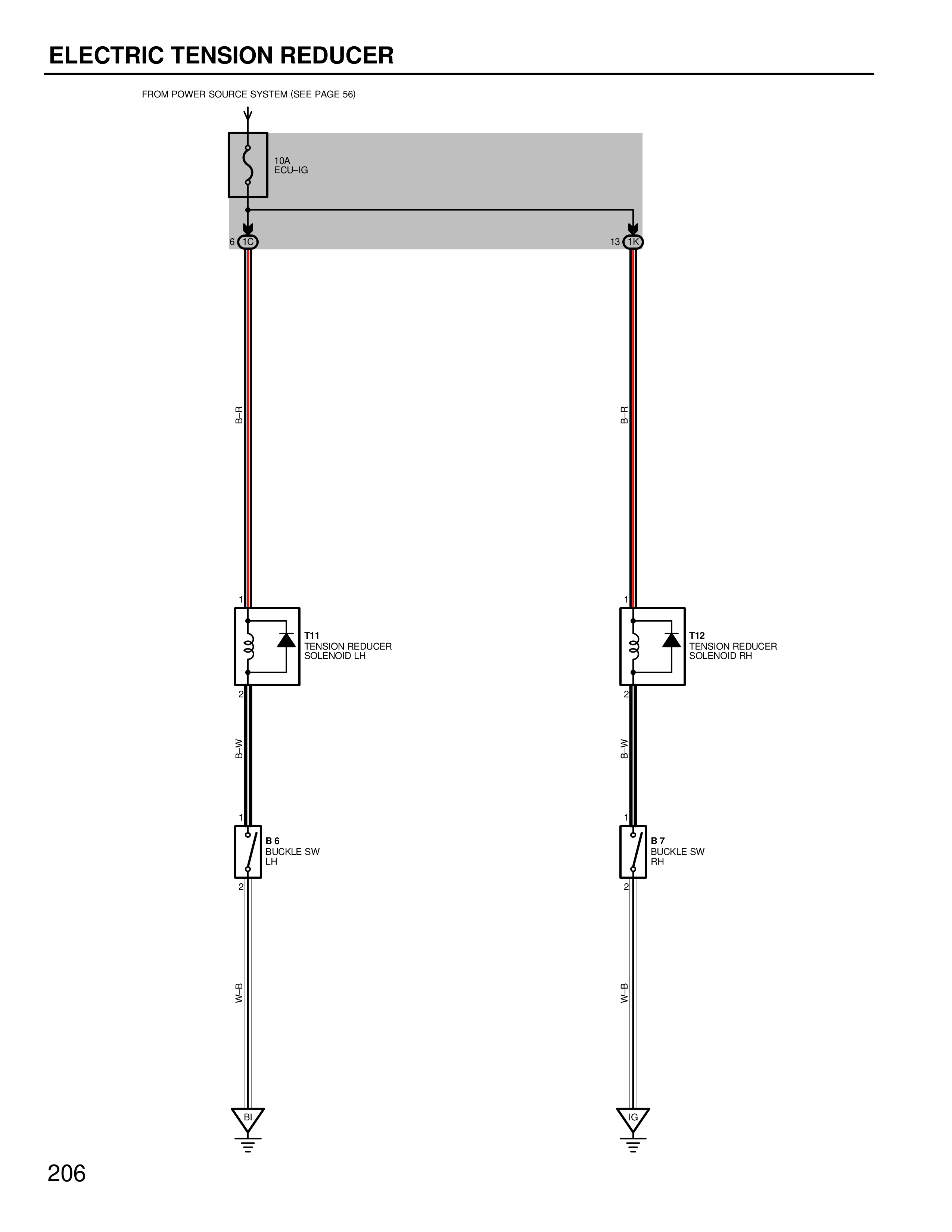

ELECTRIC TENSION REDUCER FROM POWER SOURCE SYSTEM (SEE PAGE 56) 10A ECU-IG B-R B-R 6 LC 13 LC T11 TENSION REDUCER SOLENOID LH T12 TENSION REDUCER SOLENOID RH B-W B-W B 6 BUCKLE SW LH B 7 BUCKLE SW RH W-B W-B 206
