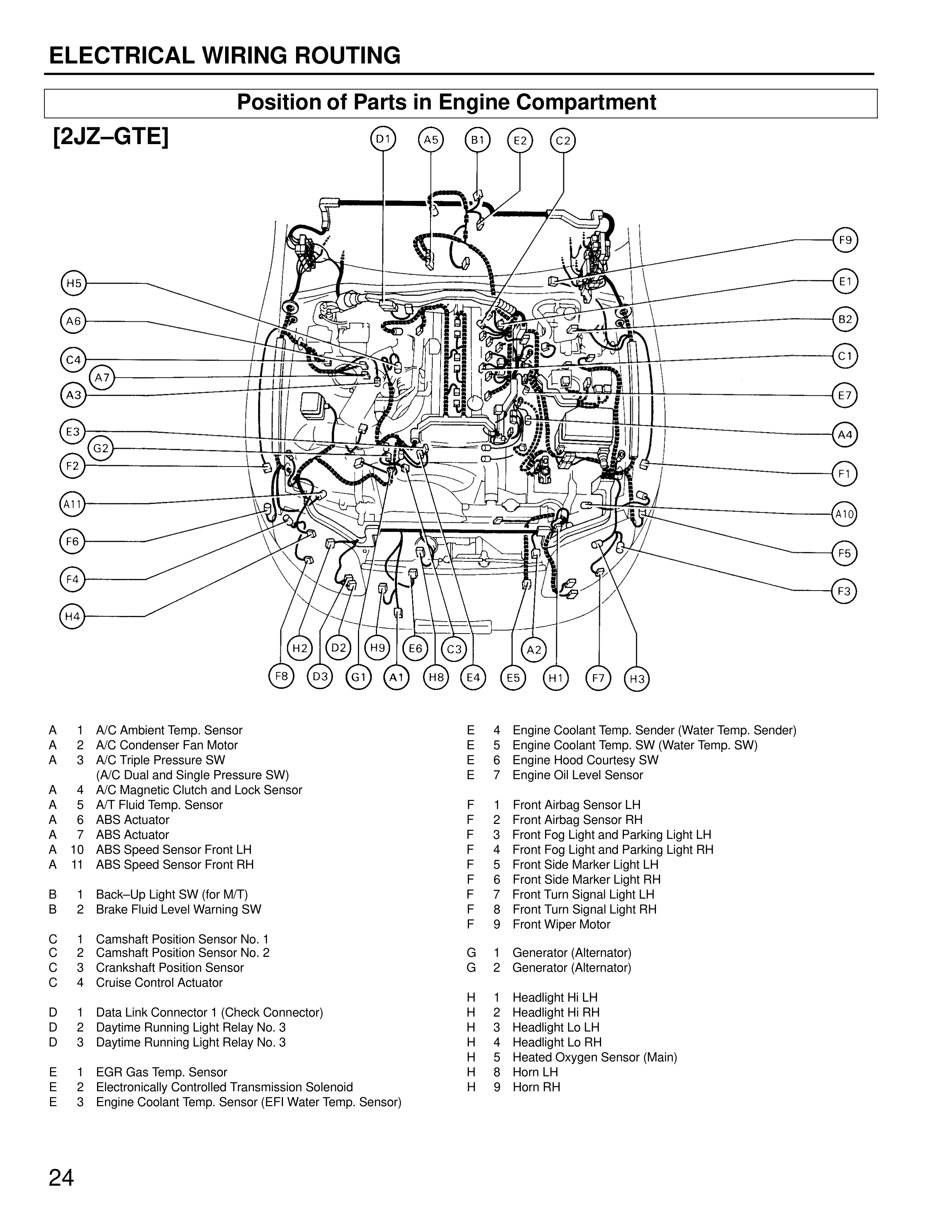

ELECTRICAL WIRING ROUTING Position of Parts in Engine Compartment [2JZ-GTE] [Diagram shows engine compartment with labeled connector positions: D1, A9, B1, C, C2, F3, E1, H5, A6, B2, C4, C1, A7, E7, A3, E3, A4, G2, F2, E1, A1, A10, F6, F4, F5, H4, F3, H2, B2, H9, E6, C3, A2, F8, D3, G1, A1, H8, E4, E5, H1, F7, H3] A 1 A/C Ambient Temp. Sensor A 2 A/C Condenser Fan Motor A 3 A/C Triple Pressure SW (A/C Dual and Single Pressure SW) A 4 A/C Magnetic Clutch and Lock Sensor A 5 A/T Fluid Temp. Sensor A 6 ABS Actuator A 7 ABS Actuator A 10 ABS Speed Sensor Front LH A 11 ABS Speed Sensor Front RH B 1 Back-Up Light SW (for M/T) B 2 Brake Fluid Level Warning SW C 1 Camshaft Position Sensor No. 1 C 2 Camshaft Position Sensor No. 2 C 3 Crankshaft Position Sensor C 4 Cruise Control Actuator D 1 Data Link Connector 1 (Check Connector) D 2 Daytime Running Light Relay No. 3 D 3 Daytime Running Light Relay No. 3 E 1 EGR Gas Temp. Sensor E 2 Electronically Controlled Transmission Solenoid E 3 Engine Coolant Temp. Sensor (EFI Water Temp. Sensor) E 4 Engine Coolant Temp. Sender (Water Temp. Sender) E 5 Engine Coolant Temp. SW (Water Temp. SW) E 6 Engine Hood Courtesy SW E 7 Engine Oil Level Sensor F 1 Front Airbag Sensor LH F 2 Front Airbag Sensor RH F 3 Front Fog Light and Parking Light LH F 4 Front Fog Light and Parking Light RH F 5 Front Side Marker Light LH F 6 Front Side Marker Light RH F 7 Front Turn Signal Light LH F 8 Front Turn Signal Light RH F 9 Front Wiper Motor G 1 Generator (Alternator) G 2 Generator (Alternator) H 1 Headlight Hi LH H 2 Headlight Hi RH H 3 Headlight Lo LH H 4 Headlight Lo RH H 5 Heated Oxygen Sensor (Main) H 8 Horn LH H 9 Horn RH 24
