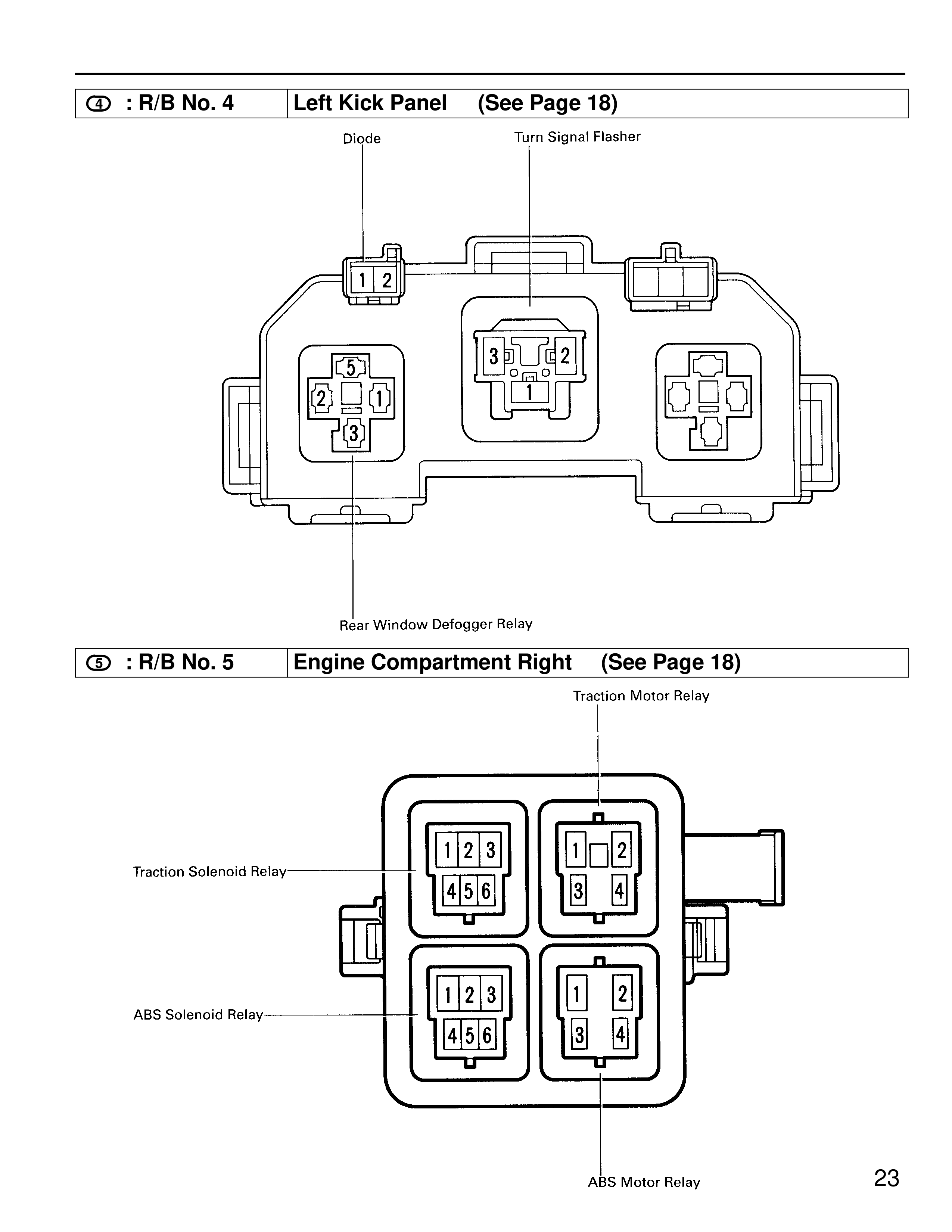

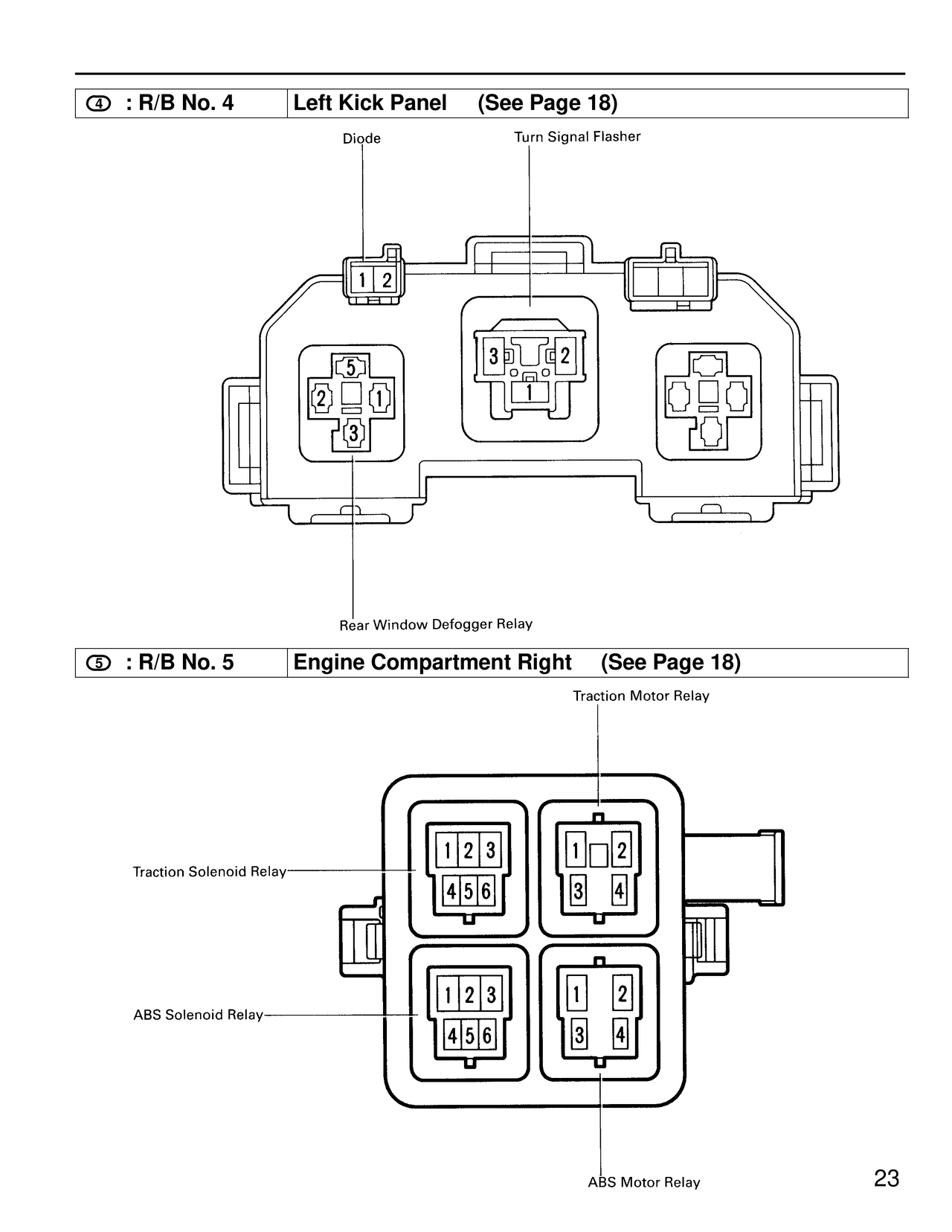

RL/Relay Locations — R/B No. 4 Left Kick Panel and R/B No. 5 Engine Compartment Right, page 6

④ : R/B No. 4 Left Kick Panel (See Page 18)

Diode

Turn Signal Flasher

1 2

5
2 1
3

3 4 2
1

Rear Window Defogger Relay

⑤ : R/B No. 5 Engine Compartment Right (See Page 18)

Traction Motor Relay

Traction Solenoid Relay

1 2 3
4 5 6

1 2
3 4

ABS Solenoid Relay

1 2 3
4 5 6

1 2
3 4

ABS Motor Relay
