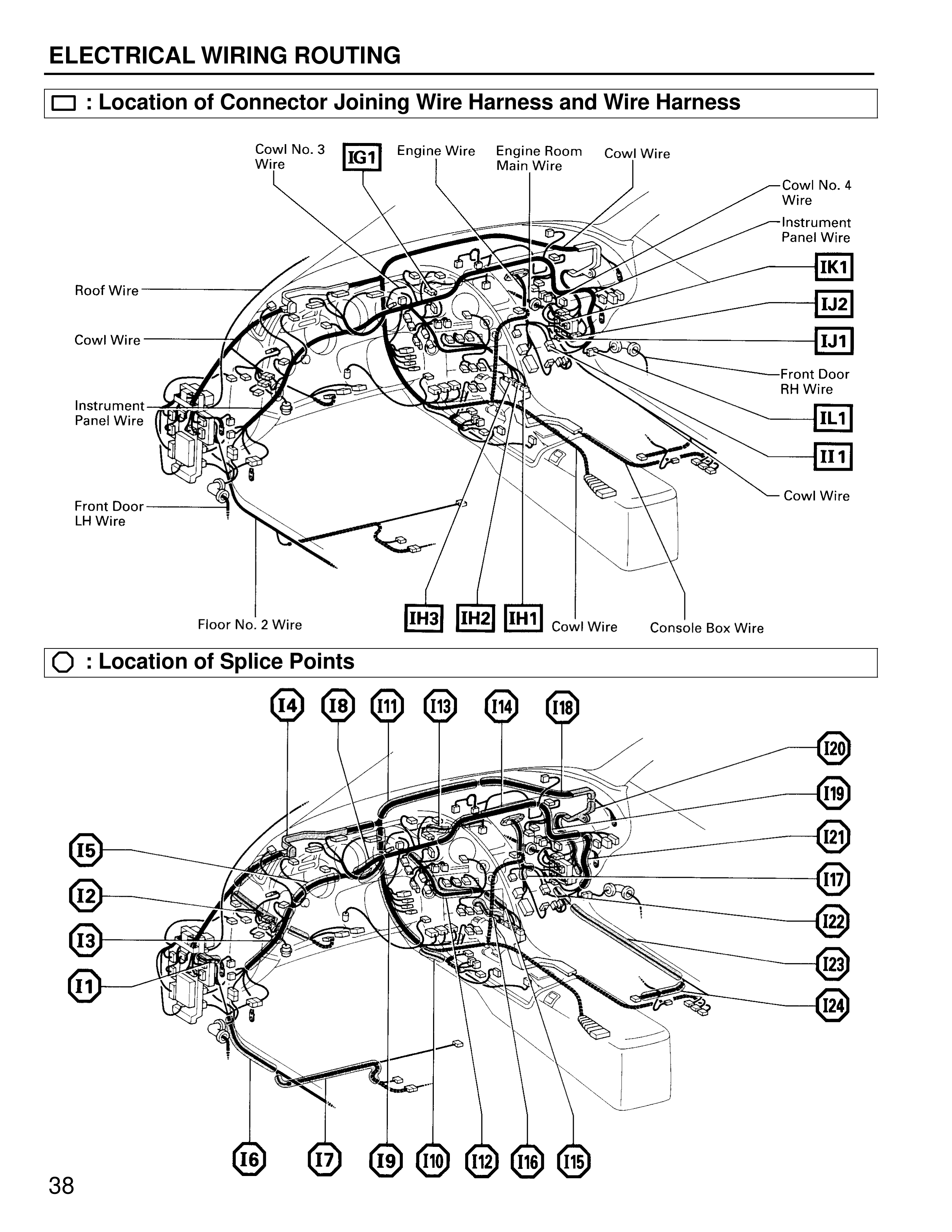

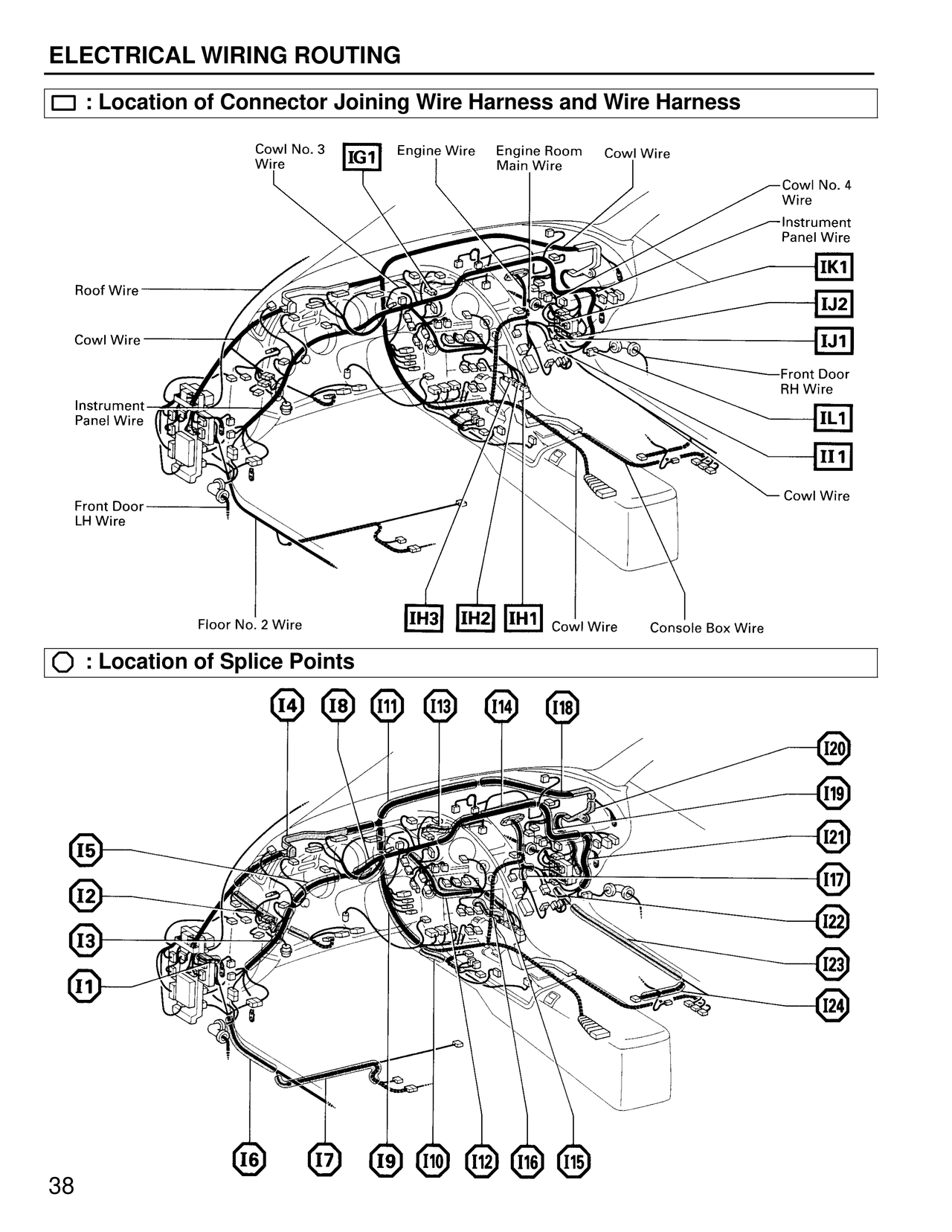

ELECTRICAL WIRING ROUTING
□ : Location of Connector Joining Wire Harness and Wire Harness
Cowl No. 3 Wire
IG1
Engine Wire
Engine Room Main Wire
Cowl Wire
Cowl No. 4 Wire
Instrument Panel Wire
IK1
IJ2
IJ1
Roof Wire
Cowl Wire
Front Door RH Wire
Instrument Panel Wire
IL1
II1
Front Door LH Wire
Cowl Wire
Floor No. 2 Wire
IH3
IH2
IH1
Cowl Wire
Console Box Wire
O : Location of Splice Points
I4
I8
Ii1
Ii3
Ii4
Ii8
I20
I19
I21
I5
I17
I2
I22
I3
I23
I1
I24
I6
I7
I9
I10
I12
I16
I15
