EWR/Electrical Wiring Routing, page 16

Connector Joining Wire Harness and Wire Harness

IG1

IH1

IH2

IH3

II1 ORANGE
1 2 3
4 5 6 7 8 9 10 11 12 13
14 15 16 17
18 19 20 21 22 23
24 25 26
27 28 29 30 31 32 33 34 35 36

1 2 3 4
5 6 7 8 9 10 11 12 13 14 15 16 17 18
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

IJ1 DARK GRAY

IJ2

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

1 2 3 4 5 6
7 8 9 10 11 12 13 14 15 16

1 2 3 4
5 6 7 8 9 10 11 12 13 14 15 16

1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18

IK1

IL1 BLUE

1 2 3 4

1 2 3 4

1 2 3 4 5 6
7 8 9 10 11 12 13 14 15 16 17

1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16 17

CODE

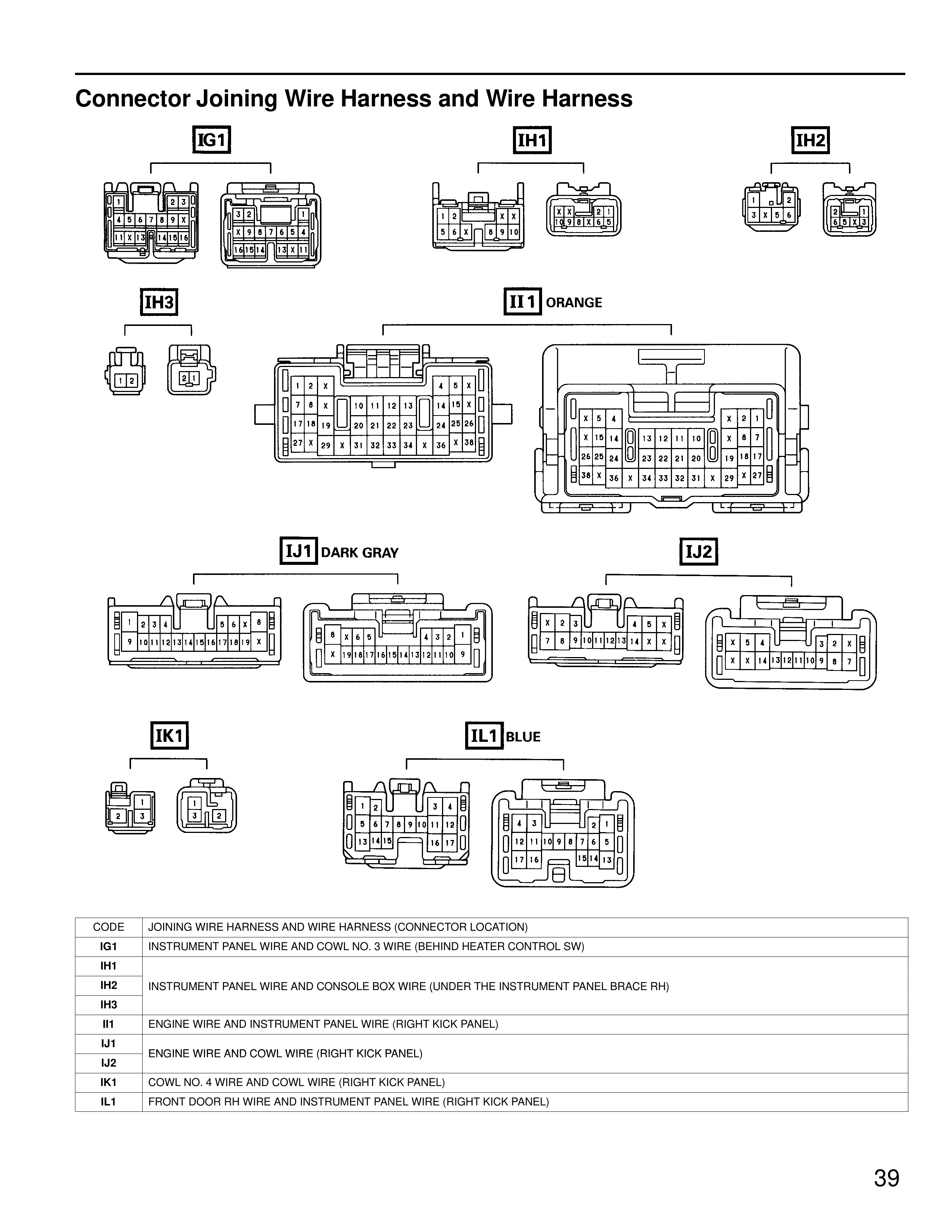

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

IG1
INSTRUMENT PANEL WIRE AND COWL NO. 3 WIRE (BEHIND HEATER CONTROL SW)

IH1

IH2
INSTRUMENT PANEL WIRE AND CONSOLE BOX WIRE (UNDER THE INSTRUMENT PANEL BRACE RH)

IH3

II1
ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)

IJ1
IJ2
ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL)

IK1
COWL NO. 4 WIRE AND COWL WIRE (RIGHT KICK PANEL)

IL1
FRONT DOOR RH WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)
