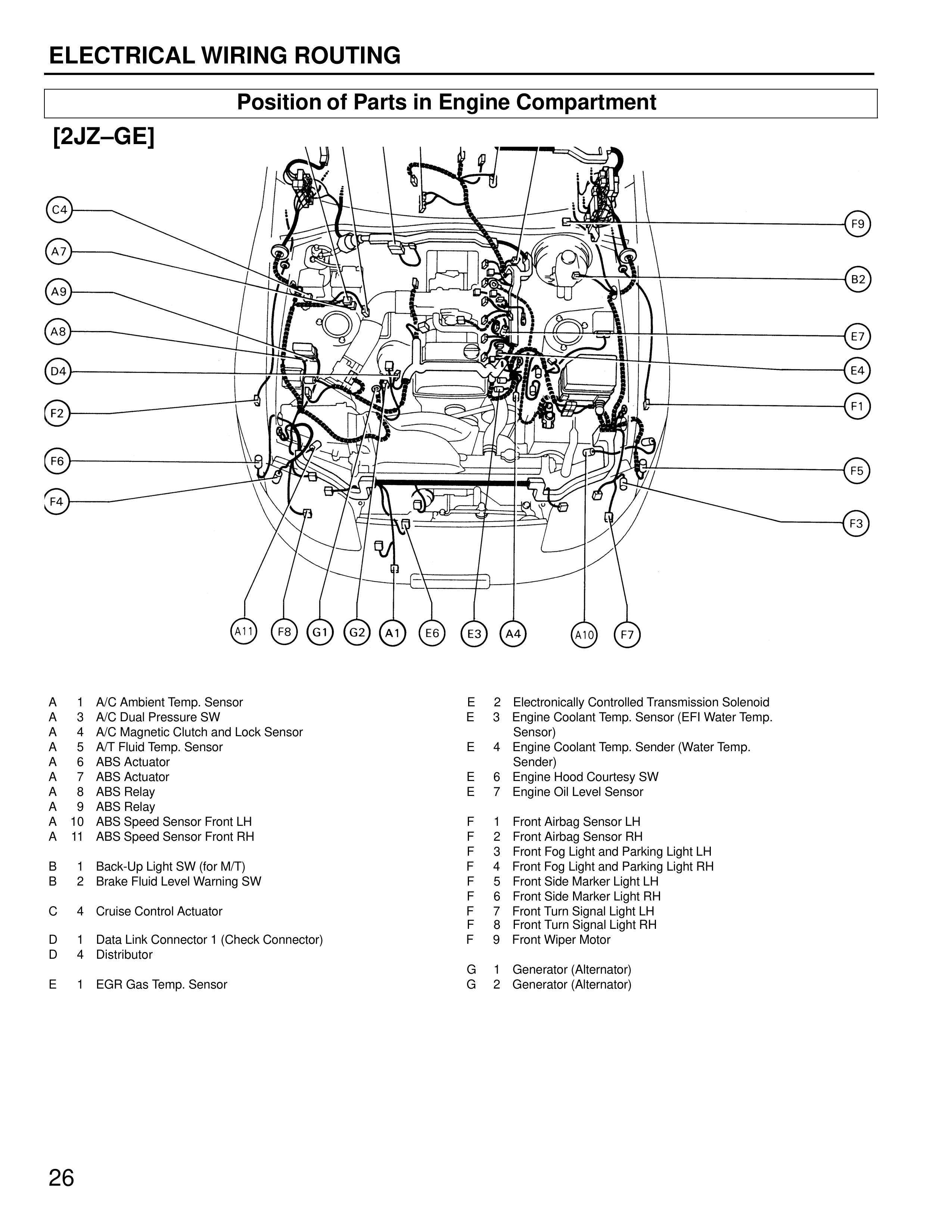

ELECTRICAL WIRING ROUTING

Position of Parts in Engine Compartment

[2JZ-GE]

C4
A7
A9
A8
D4
F2
F8
F4
A11
F8
G1
G2
A1
F6
E3
A4
A10
F7

F9
B2
C7
E4
E1
F5
F3

A 1 A/C Ambient Temp. Sensor
A 3 A/C Dual Pressure SW
A 4 A/C Magnetic Clutch and Lock Sensor
A 5 A/T Fluid Temp. Sensor
A 6 ABS Actuator
A 7 ABS Actuator
A 8 ABS Relay
A 9 ABS Relay
A 10 ABS Speed Sensor Front LH
A 11 ABS Speed Sensor Front RH

B 1 Back-Up Light SW (for M/T)
B 2 Brake Fluid Level Warning SW

C 4 Cruise Control Actuator

D 1 Data Link Connector 1 (Check Connector)
D 4 Distributor

E 1 EGR Gas Temp. Sensor

E 2 Electronically Controlled Transmission Solenoid
E 3 Engine Coolant Temp. Sensor (EFI Water Temp. Sensor)
E 4 Engine Coolant Temp. Sender (Water Temp. Sender)
E 6 Engine Hood Courtesy SW
E 7 Engine Oil Level Sensor

F 1 Front Airbag Sensor LH
F 2 Front Airbag Sensor RH
F 3 Front Fog Light and Parking Light LH
F 4 Front Fog Light and Parking Light RH
F 5 Front Side Marker Light LH
F 6 Front Side Marker Light RH
F 7 Front Turn Signal Light LH
F 8 Front Turn Signal Light RH
F 9 Front Wiper Motor

G 1 Generator (Alternator)
G 2 Generator (Alternator)
