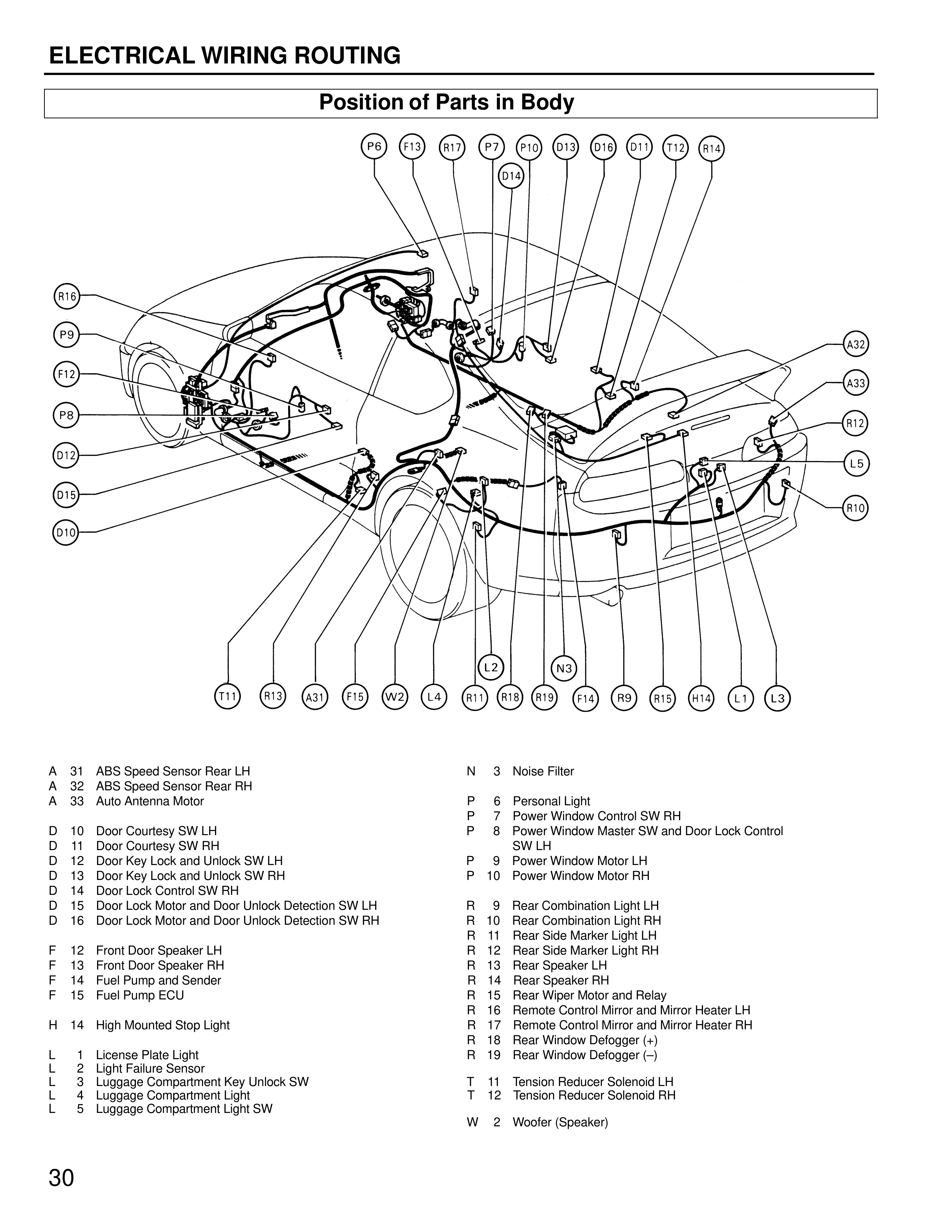

ELECTRICAL WIRING ROUTING Position of Parts in Body P6 F13 R17 B7 P10 D13 D16 D11 T12 R12 D14 R16 P9 T12 P8 D12 D15 D10 A32 A33 R12 L5 R10 L11 R13 A31 F15 W2 L4 R11 R18 R19 F14 R9 R15 N14 T1 L3 A 31 ABS Speed Sensor Rear LH A 32 ABS Speed Sensor Rear RH A 33 Auto Antenna Motor D 10 Door Courtesy SW LH D 11 Door Courtesy SW RH D 12 Door Key Lock and Unlock SW LH D 13 Door Key Lock and Unlock SW RH D 14 Door Lock Control SW RH D 15 Door Lock Motor and Door Unlock Detection SW LH D 16 Door Lock Motor and Door Unlock Detection SW RH F 12 Front Door Speaker LH F 13 Front Door Speaker RH F 14 Fuel Pump and Sender F 15 Fuel Pump ECU H 14 High Mounted Stop Light L 1 License Plate Light L 2 Light Failure Sensor L 3 Luggage Compartment Key Unlock SW L 4 Luggage Compartment Light L 5 Luggage Compartment Light SW N 3 Noise Filter P 6 Personal Light P 7 Power Window Control SW RH P 8 Power Window Master SW and Door Lock Control SW LH P 9 Power Window Motor LH P 10 Power Window Motor RH R 9 Rear Combination Light LH R 10 Rear Combination Light RH R 11 Rear Side Marker Light LH R 12 Rear Side Marker Light RH R 13 Rear Speaker LH R 14 Rear Speaker RH R 15 Rear Wiper Motor and Relay R 16 Remote Control Mirror and Mirror Heater LH R 17 Remote Control Mirror and Mirror Heater RH R 18 Rear Window Defogger (+) R 19 Rear Window Defogger (–) T 11 Tension Reducer Solenoid LH T 12 Tension Reducer Solenoid RH W 2 Woofer (Speaker) 30
